Vivid Razar 1070+


Description

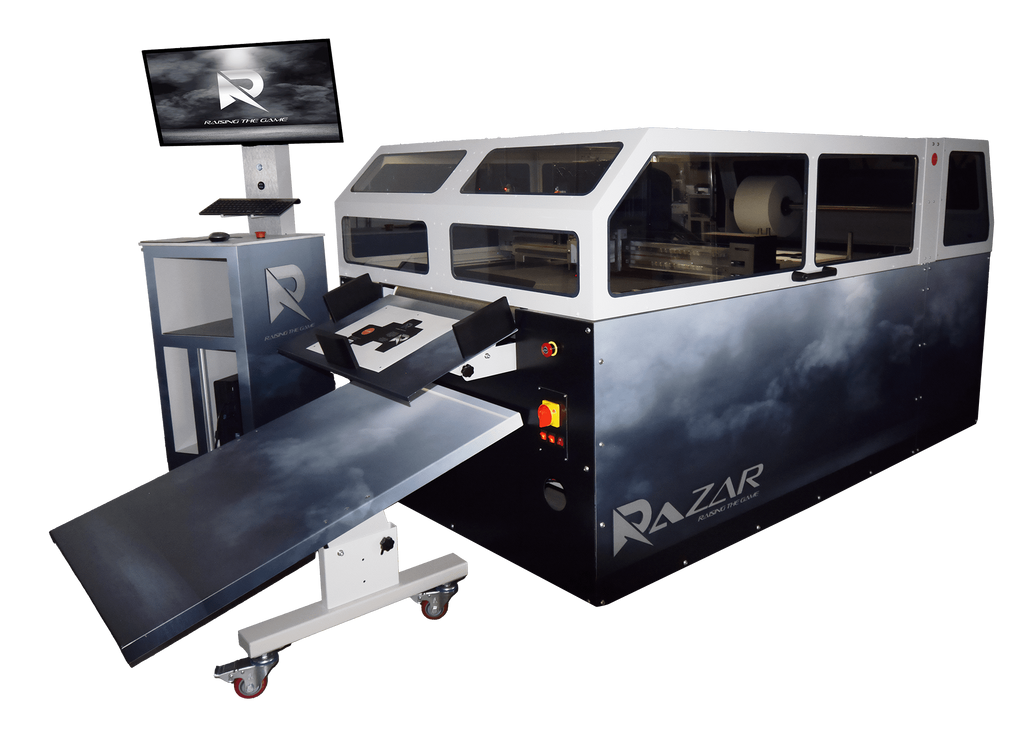

A digital die-cutting and finishing system that gives you the freedom to create unique, intricate, and premium products with unmatched efficiency. Razar integrates cutting, creasing, perforating, taping, and now raised spot UV in a single, seamless workflow, enabling you to bring designs to life in just one pass.

Built on the same trusted engineering principles as the VeloBlade Volta, Razar delivers all the same high-quality functionality and reliability users already know and love, now enhanced with advanced raised spot UV capability for stunning tactile and visual finishes.

Razar offers the same intelligent automation and precision performance as the VeloBlade Volta, enabling fast, flexible, and fully unattended production. Whether you’re handling short runs or high-volume jobs, it effortlessly processes both cut-sheet and roll-fed.

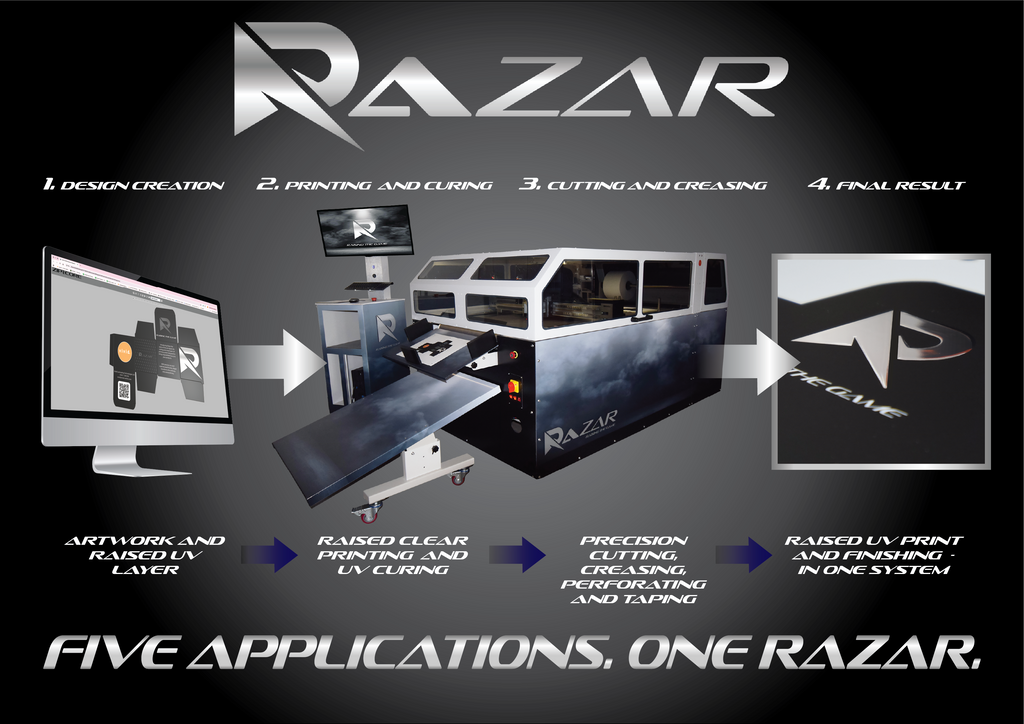

With Razar, you can cut, crease, perforate, tape, and apply raised spot UV, all in one streamlined process.

UK-designed and crafted with patented technology, Razar sets a new standard for digital finishing innovation.

Key Features

  • World’s first all-in-one finishing system
  • Print onto a range of uncoated, coated and laminated stocks
  • Raised spot UV, crease, cut, perforate and tape
  • High lay down achievable in one pass (multi-pass for increased raised texture)
  • Auto-feed and leave the system unattended
  • Process cut sheet or roll-fed
  • UK-designed and crafted with UK patented print technology

Perfect for...

 Packagin POS  Labels Business Cards

Product Specifications:

Auto sheet capacity: 150mm / 5.90"



Feeding Type: Vacuum feed with clampsMax. sheet size (mm/inches): 1000mmx 707mm /39”x27”



Min. sheet size (mm/inches): 210x297mm / 8"x12



Max Cutting Depth:  Max Cutting Depth – Standard is 5 mm - 10 mm with optional oscillating tool



Tools: Rotary knife, Driven Knife, Creasing Wheel, Pen, Kiss Cut Knife, Oscillating Knife (Optional), Camera and Xaar Print Head Technology



Max. cutting speed: 1000mm/s / 39.37"



Cutting Media: Card paper, PP paper, label, KT Board, Foam Board, ABS Board, Corrugated Paper, Reflective Material



Repeat accuracy: +0.1mm



Camera registration system: CCD Registration System



Power Consumption (W): 220-240V/60/1PHASE



Overall Dimensions (mm): 3110x1350x1169/122x53x46”



Gross Machine Weight: 502Kg

Custom Stock Status: Ships Immediately
Electrical: 220-240V / 15 Amp / 1 Phase
