Description
Key Features

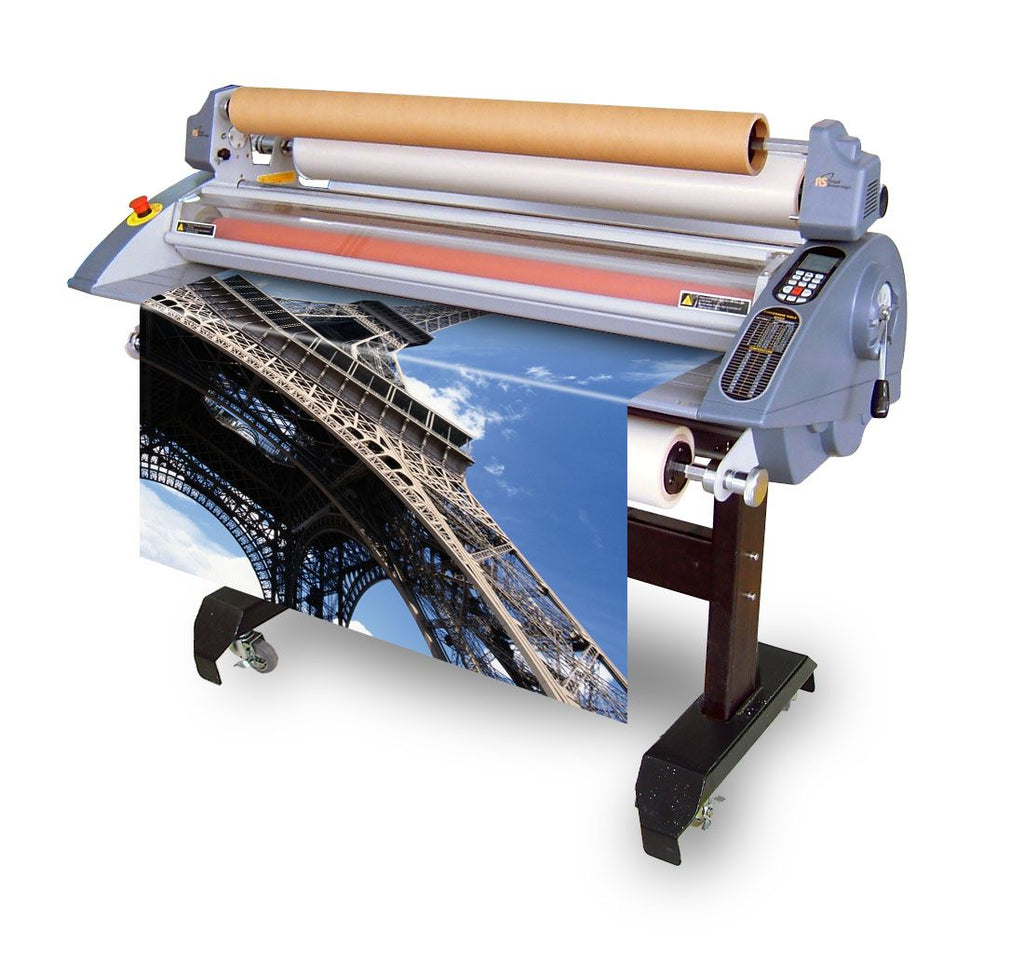

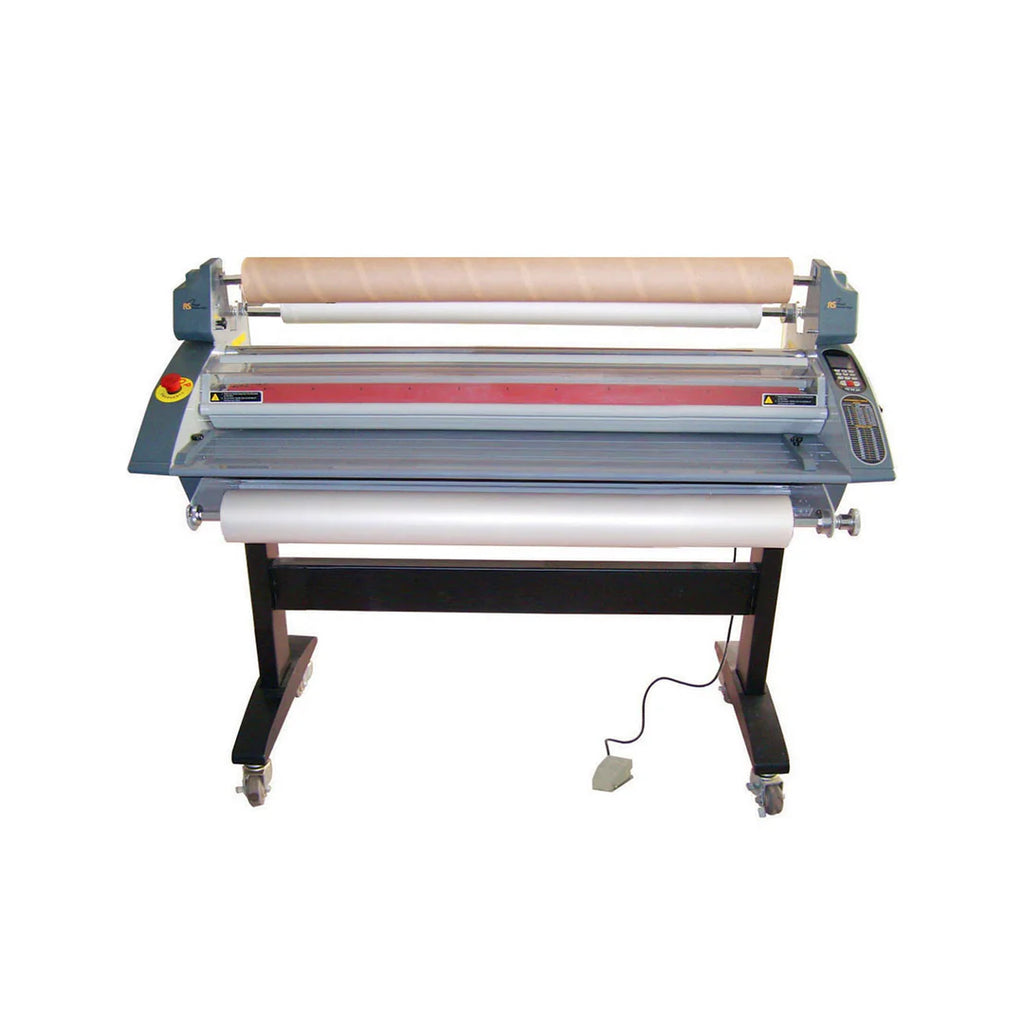

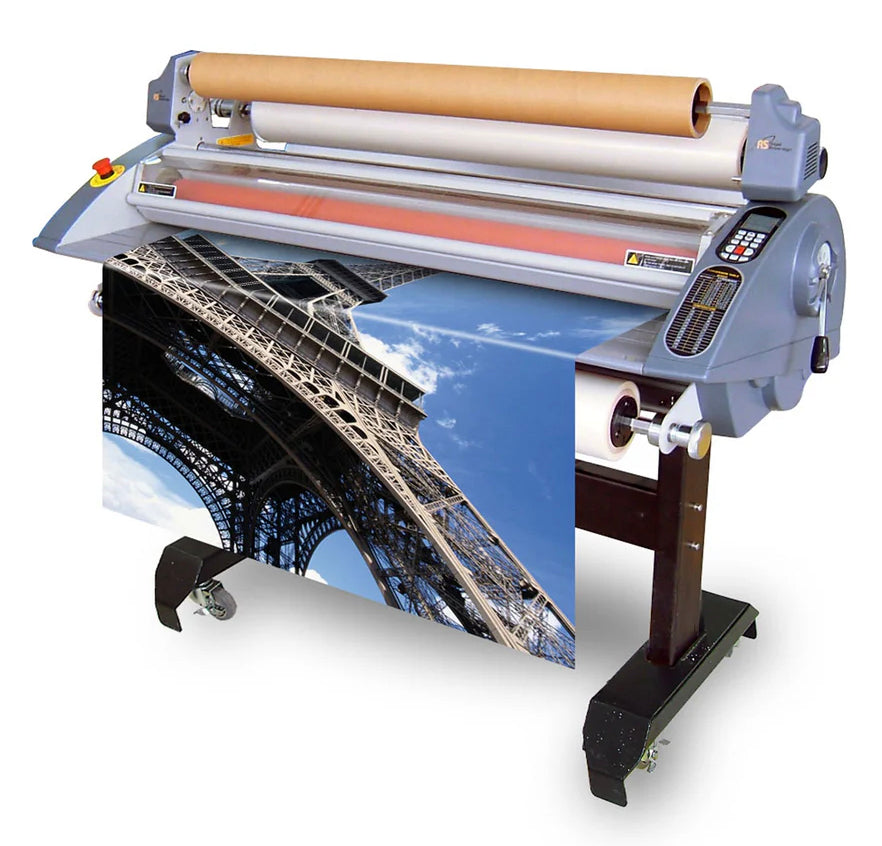

65" Dual Thermal and Cold Pressure Sensitive Wide Format Roll Laminator RSH-1651
The RSH-1651 is great for laminating all types of substrates and graphics up to 65” wide. Save the most often used settings into one of the 9 memory channels for quick access. Economical, high-quality thermal and pressure-sensitive laminating and mounting up to 5/8 inch.
Wide Format Laminating and Mounting
- This 65" laminator is ideal for laminating and mounting wide format graphics
- Simply use the quick notch system for nip gap adjustments for varying substrate thicknesses
Useful Features
- 9 memory channels for fast access to previously used speed and heat settings
- Document guides for straight feeding of material
- Auto-grip hubs allow for quick and easy replacement of laminating film
Versatile Laminating
- One laminator for both cold/ PSA and hot/thermal lamination
- Fast, simple switch-over from thermal to pressure-sensitive
- 2-sided encapsulation
| Product Specifications | |
|---|---|
Maximum Width | RSH-1651: 65" (1650 mm) RSH-1151: 45" (1150 mm) |
Maximum Speed | Cold: 13 ft./min. (8.5 m./min.) Hot: 9.8 ft./min. (8.5 m./min.) |
Maximum Temperature | 320°F (160°C) |
Mounting | Up to 5/8" |
Gap Adjustment | Quick Notch |
Front Feeder | Optional (RSH-1651) |
Rewinder | Optional (RSH-1651) |
Reverse | Yes |
Table | Removable |
Emergency Stops | Front & Rear Facing |

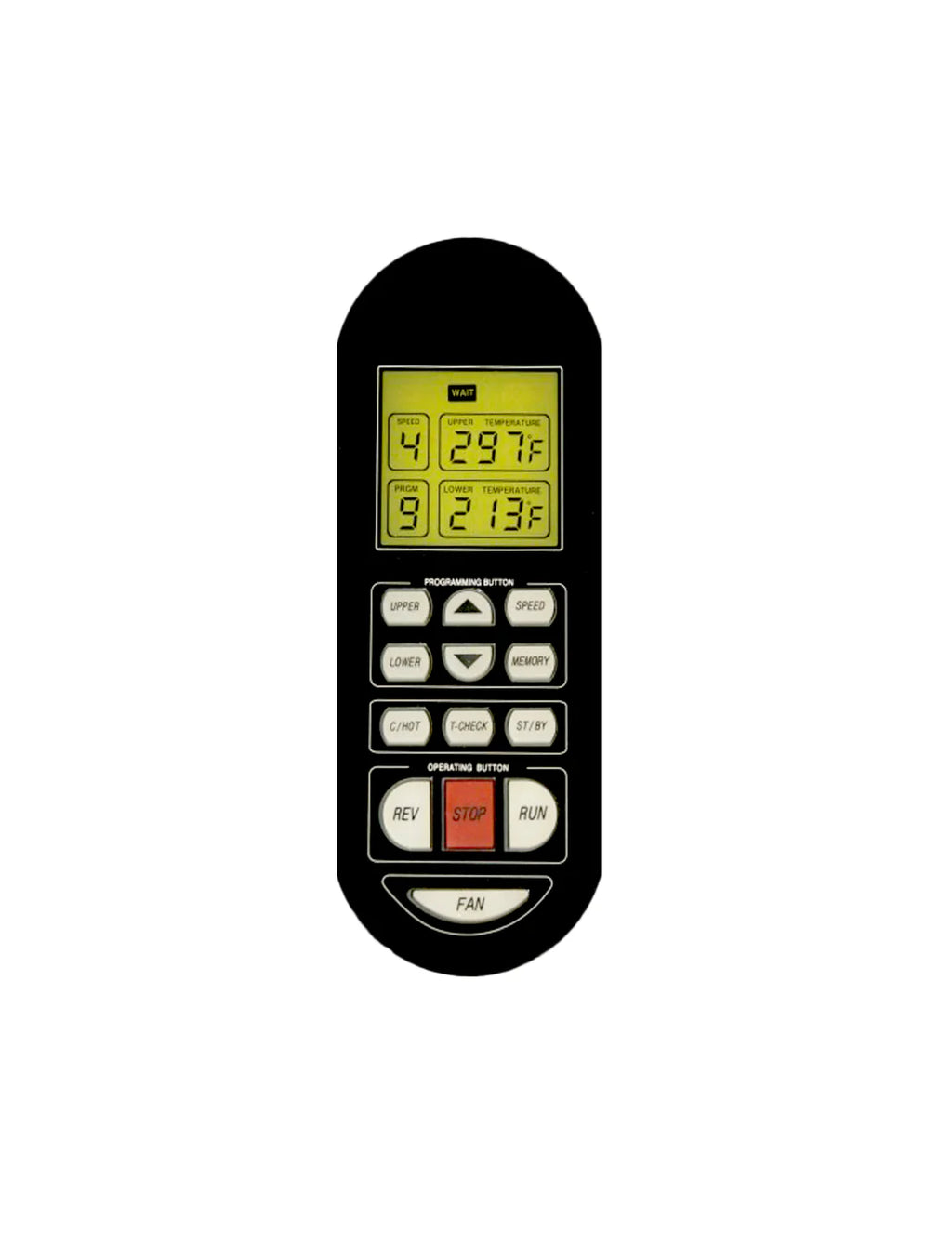

Rear Remote | Yes |
Shaft Size | 3" Auto-Grips |
Voltage | AC 200,220~240V, 50/60Hz |
Power | 3300W |
Power Receptacle & Plug | NEMA 6-15P, NEMA 6-15R |
Dimensions (WxDxH) | RSH-1651: 77" x 36" x 48" RSH-1151: 59" x 36" x 48" |
Weight | RSH-1651: 593 lbs. RSH-1151: 373 lbs. |
Crate Dimensions (WxDxH) | RSH-1651: 86" x 36" x 58" RSH-1151: 66" x 36" x 58" |
Crate Weight | RSH-1651: 869 lbs. RSH-1151: 617 lbs. |
Colour: Grey
Custom Stock Status: Ships 3-4 Days
Electrical: 200-240V/50-60Hz Single phase
