Description

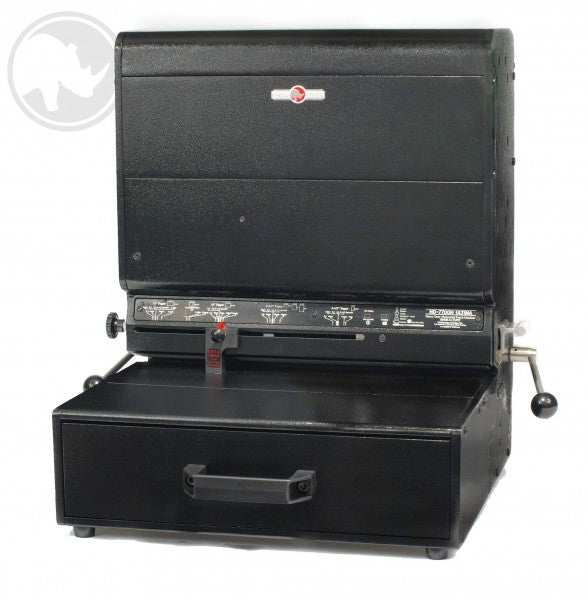

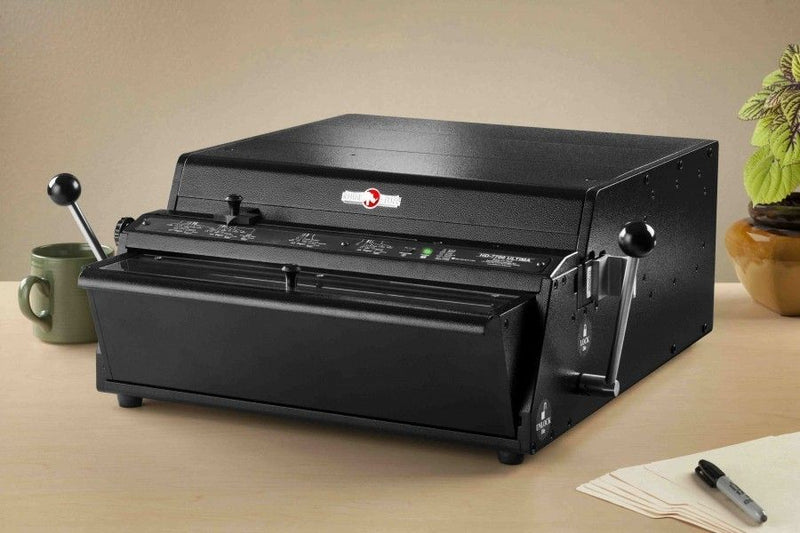

The HD7700 Ultima is the top of the line heavy duty durable Table Top Punch that has no equal. Combining the Rhin-O-Tuff patented Quick Change Die System with the following exciting new features and a 3 year warranty (along with all of the standard features below), the HD-7700 Ultima will handle any size project, large or small. Designed for high volume commercial and corporate use.
Features
14” ( 356 mm ) open ended extra capacity die: Punch up to 55 sheets or 110 pages of 11 inch, 20 pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used.
U-View waste tray: Holds up to 150% more waste than any other tabletoppunch&eliminatestroublesomeoverflls.
The Accu-Set Paper Stop: Set-up all hole placements easily & accurately, even on odd sized paper.
Built in Automatic and Manual Reverse: Providing extra insurance to reduce costly down time & expensive service calls due to overload jams.
New Diagnostic Display Lights: Give indications of important machine conditions.
Specifications
• Dies available for Coil, Wire, & Comb
• Dimenstions are 8½" x 21” x 22½”
• Our new Overload Detection Feature triggers an auto reversing function to reduce jamming in the punch.
• Rated up to 55 sheets or 110 pages of 20 pound (80 gsm) paper.
• The number of sheets depends on the paper weight and punch pattern used.
• 25 cycles per minute.
Punch up to 5 plastic Mylar sheets regardless of hole pattern (depending on Mylar mil thickness).
• Patented “QCDS”, Quick Change Die System. All punch pins easily disengage. “Accu-Set”paper adjustment knob for fine adjustments on odd paper sizes.
• Smooth, Quiet, Power on Demand Operation.
• Standard Foot Pedal & Palm Switch, optional Versa Switch.
• The HD7700 has more than 20 interchangeable dies available with 12 standard hole patterns. (Each die is priced separately)
• Combs
• Wire Loop
• Plastic Coils
• Velo Bind™ GBC
• 3 Hole Loose Leaf
• Extremely durable all metal construction.
• Extra high capacity Waste Chip Tray with Clear View Access.
• More than 98% recyclable
• 3 Year Warranty
