Description

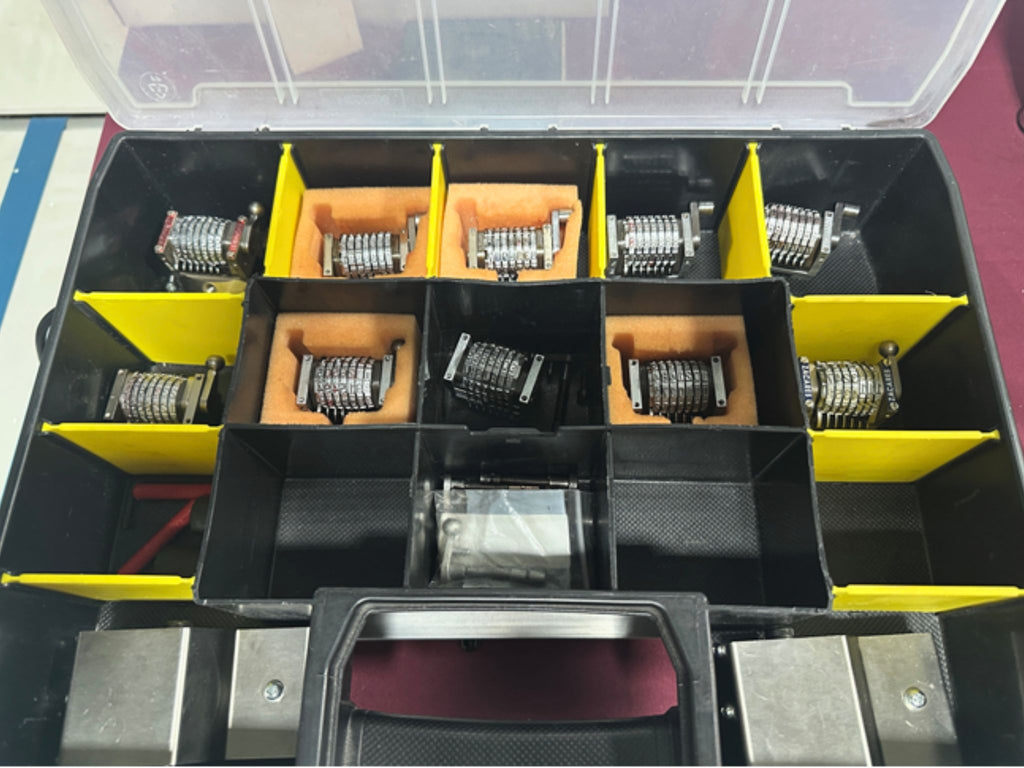

This machine comes with 4 Parallel numbering heads and 6 Convex numbering heads. $ 13,995.00
All Morgana numbering machines use rotary numbering action. The operating principles are similar to those used on litho presses. ‘Point contact’ ensures superb quality on single sheets and unmatched definition when crashing through multi-part sets. Simple adjustment to the platen pressure compensates for varying stock thicknesses.

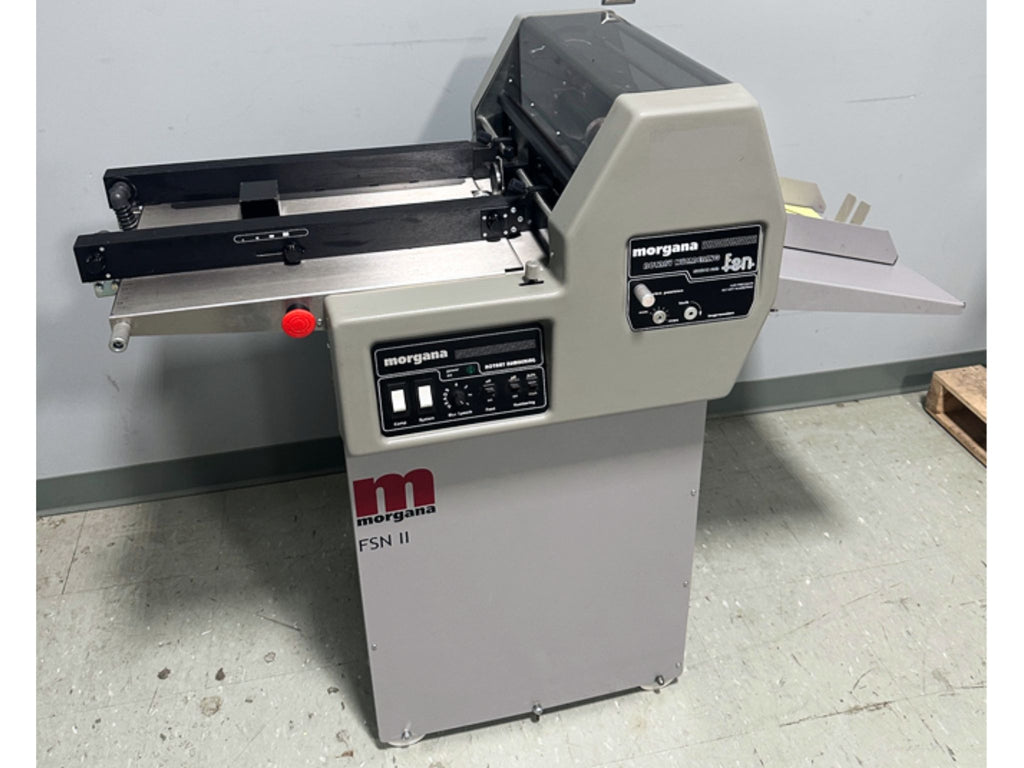

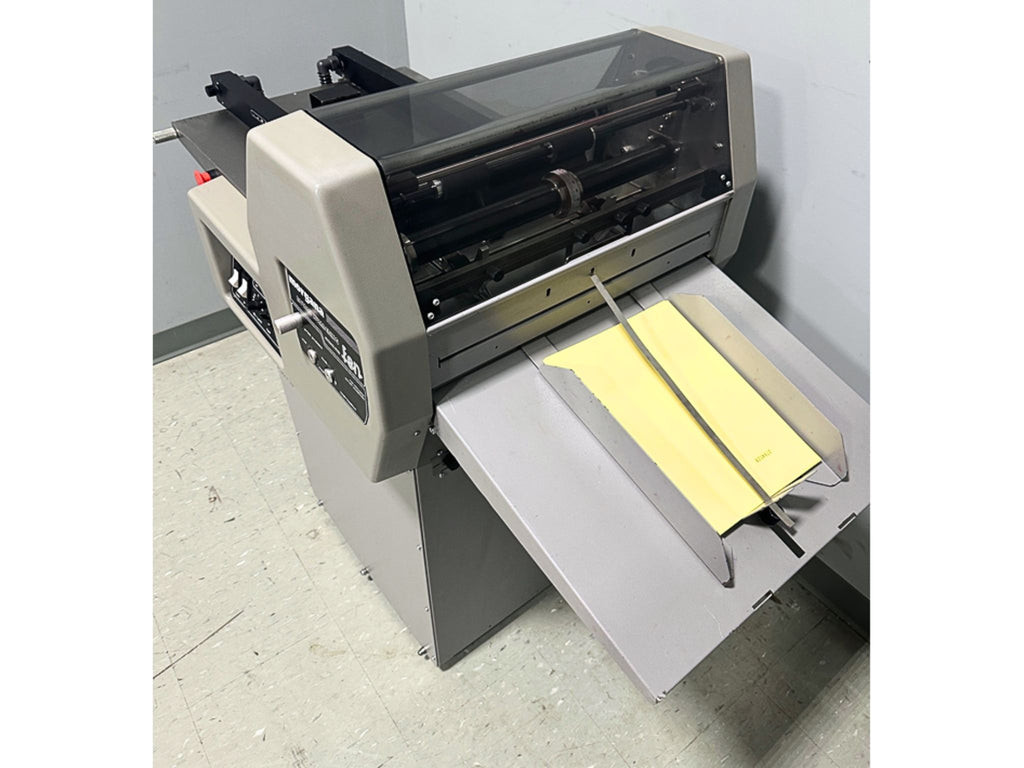

The FSN Rotary numbering machine is ideal for the small in-plant, instant or commercial printer. With a production speed of 72,000 impressions per hour when using 8 heads. The FSN features quality numbering and the ability to feed up to 460mm x 460mm (18″ x 18″) sheets.
The FSN has a powerful suction feeder which will feed a wide range of paper weights. Positive control of the paper from feed to delivery ensures unmatched and consistent register of numbering action. The suction feed system uses electronic pulsing, while feeding from the bottom of the stack allows loading on the run for non-stop production.
Our standard inking system uses a micro porous ink roller. This transfers ink onto a forme roller to give clean consistent inking of the numbering heads. Ink rollers are available in black with an optional re-inking system enables you to use Pantone inks. The system produces thousands of impressions before it needs re-inking.
The FSN control panel allows for fast simple operation. Make ready from job to job is accomplished in seconds. Slitting perforators give flat perforating on a wide range of stocks. Various perforating, slitting and scoring wheels are available.
The Morgana System 90 jogger is designed to complement the FSN, but will also interface with other machines because of the angle of the jogger and the fact that it is fully adjustable in height. It takes a 698.5mm x 518mm (27.5″ x 20.4″) sheet size and has a robust motor which provides variable jogging power that will knock up the most demanding materials.
Sydney Stone is your #1 source for reconditioned equipment in Canada.
All reconditioned equipment is restored to factory tolerances, comes with all tools and manuals that would have been included with the machine when it was sold as new, as well as our 100-day Parts & Labour Warranty*.
Demo Model equipment comes with our 1-Year, Sydney Stone 5-Star Extended Maintenance Agreement* at no additional charge.
We take care of your equipment so you can take care of your business. Be confident in your investment! Just another way that Sydney Stone is Giving Meaning to Expertise.
*Subject to geographic location. Contact sales@printfinishing.com for more information.
