Description
26.4" Hydraulic Programmable Paper Cutter
Low Count • Excellent Condition • Fully Reconditioned • Ready for Production

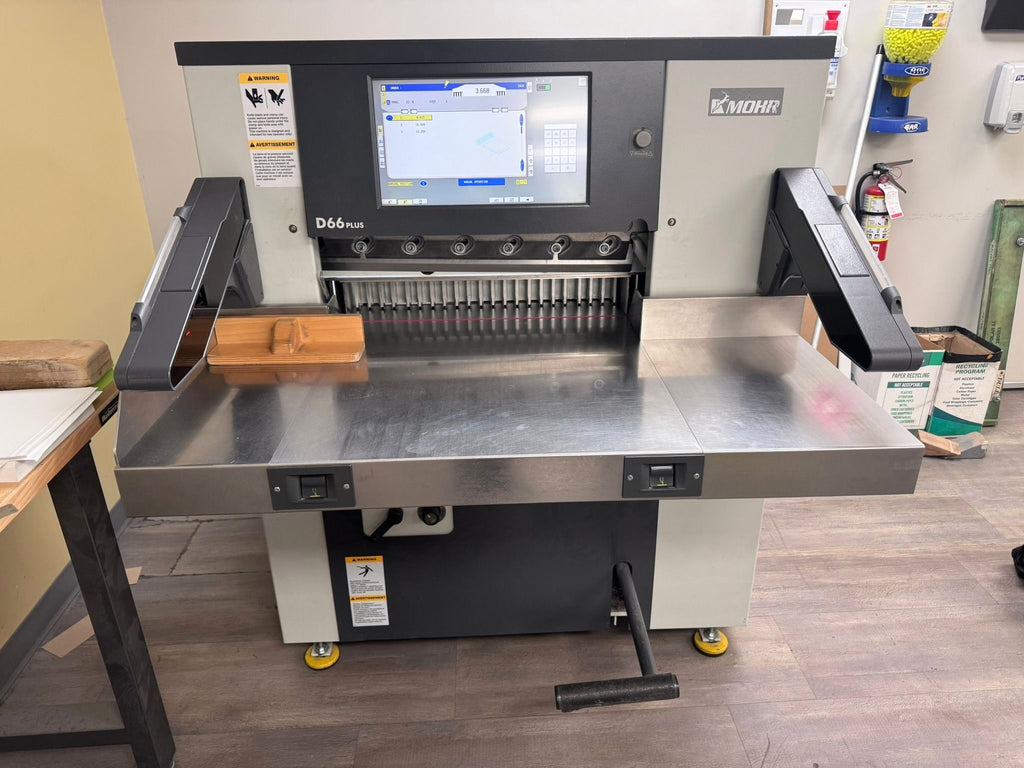

This is an excellent opportunity to acquire a 2016 MOHR 66 PLUS hydraulic paper cutter with an exceptionally low production count of only 257,449 cuts/sheets processed.
The MOHR 66 PLUS is a professional production cutter built for commercial print, digital print and finishing environments. Its 26.4" cutting width, hydraulic knife and clamp system, programmable backgauge and precision positioning provide the accuracy and productivity expected from a high-end European paper cutter. The hydraulic swing-cut system is designed for precise, smooth cutting while adjustable clamp pressure allows the machine to be configured for different stocks and applications.
- 2016 MOHR 66 PLUS

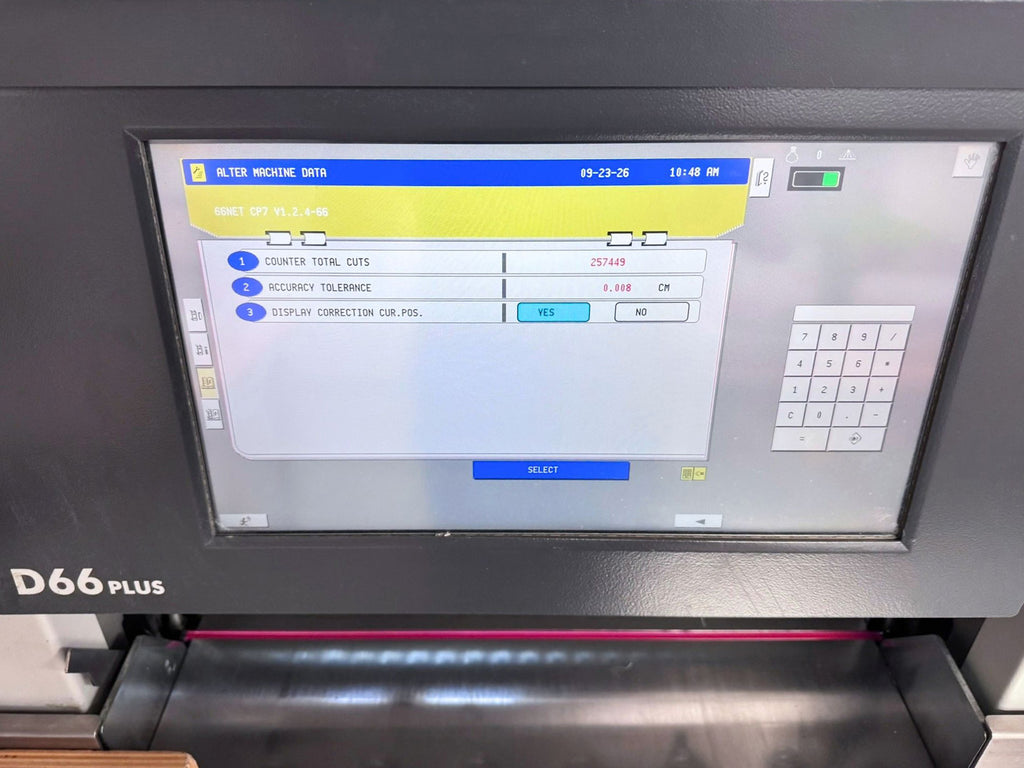

- Only 257,449 on the counter
- 26.4" cutting width
- Hydraulic knife and clamp
- Programmable electronic control
- 18.5" touchscreen
- Up to 1,998 cutting programs
- Process visualization
- Precision backgauge positioning
- Optical cutting-line indication
- Adjustable clamping pressure
- Designed for up to 20 cuts per minute
- Fully reconditioned
- Excellent overall condition
- Includes two knives
- Includes complete tool package
- Includes operator manual
- Includes warranty
NORTH AMERICAN SPECIFICATIONS
|
Specification |
MOHR 66 PLUS |
|
Maximum Cutting Width |
26.37" |
|
Maximum Feed Depth |
26.37" |
|
Maximum Lift / Loading Height |
3.14" |
|
Maximum Clamp Pressure |
3,300 lbs |
|
Minimum Clamp Pressure |
440 lbs |
|
Backgauge Speed |
2.76"/sec. |
|
Minimum Automatic Cut |
0.60" |
|
Minimum Cut with False Plate |
1.96" |
|
Cutting Speed |
Up to 20 cuts/min. |
|
Knife Thickness |
0.38" |
|
Machine Width |
49.2" |
|
Machine Depth |
71.9" |
|
Machine Height |
59.1" |
|
Approx. Weight |
1,367 lbs |
208 – 230 V / 60 / 3 Phase – 15 amp
Sydney Stone is your #1 source for reconditioned equipment in Canada.
All reconditioned equipment is restored to factory tolerances, comes with all tools and manuals that would have been included with the machine when it was sold as new, as well as our 100-day Parts & Labour Warranty*.
Demo Model equipment comes with our 1-Year, Sydney Stone 5-Star Extended Maintenance Agreement* at no additional charge.
We take care of your equipment so you can take care of your business. Be confident in your investment! Just another way that Sydney Stone is Giving Meaning to Expertise.
*Subject to geographic location. Contact sales@printfinishing.com for more information.
