Description

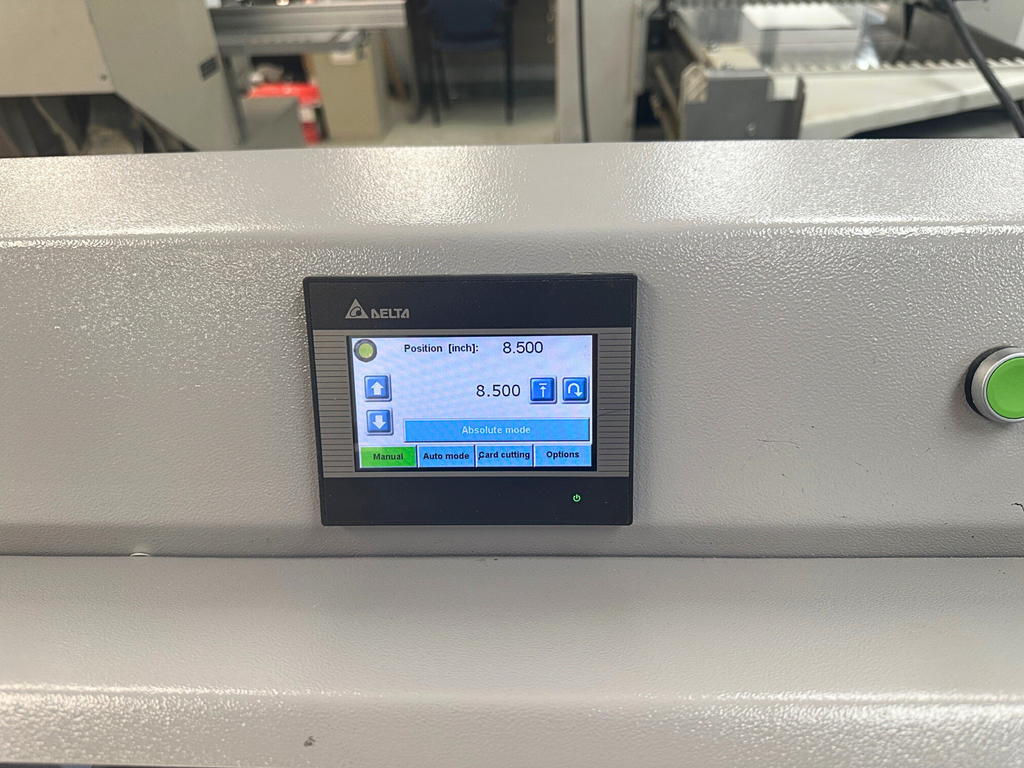

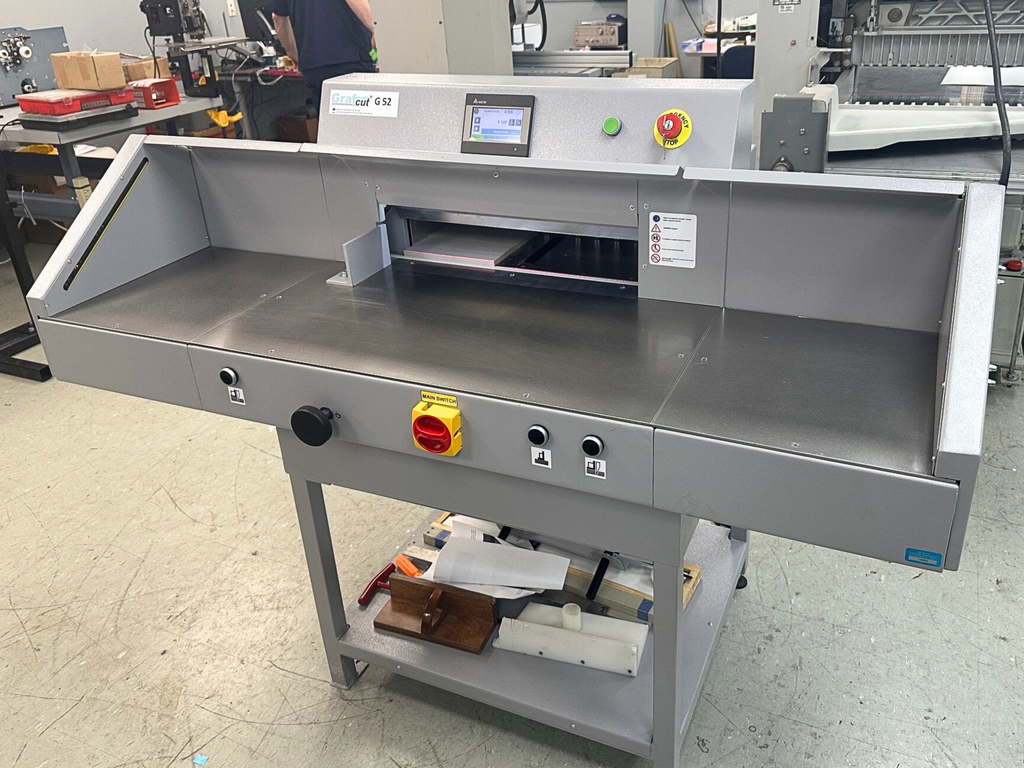

Introducing a new level of strength and performance to the printing industry, the Grafcut guillotines have been manufactured with an emphasis on operator convenience and productivity. The user-friendly, fully programmable touch screen with customized software and up to 100 jobs programming allows for storage of any cut job. Its many safety features include an IR safety curtain on the front table, a safety cover on the rear table, electronically controlled two-hand operation, and automatic blade and clamp return from every position. The Grafcut 52 comes standard with adjustable clamp pressure, false clamp, two knives, light curtains and a stainless-steel bed, side tables.
Cut up to 20.88" (530mm) wide by 20.48" (520mm) depth
• Maximum cut height 2.36" (59.9mm)
• Minimum cut with false clamp 0.98" / 1.57" (24 / 39mm)
• Includes two knives and three cutting sticks
• Includes side tables
• Program module with 100 programs
• Fully programmable backgauge
• Mechanical blade and clamp drive
• 60.67" x 45.7" x 49.25" size with side tables (1541 x 1160 x 1251mm)
• 550 lbs weight (249kg)
• 208 -230V / 60 / 1 Phase – 20 amp
Sydney Stone is your #1 source for reconditioned equipment in Canada.
All reconditioned equipment is restored to factory tolerances, comes with all tools and manuals that would have been included with the machine when it was sold as new, as well as our 100-day Parts & Labour Warranty*.
Demo Model equipment comes with our 1-Year, Sydney Stone 5-Star Extended Maintenance Agreement* at no additional charge.
We take care of your equipment so you can take care of your business. Be confident in your investment! Just another way that Sydney Stone is Giving Meaning to Expertise.
*Subject to geographic location. Contact sales@printfinishing.com for more information.
