Description

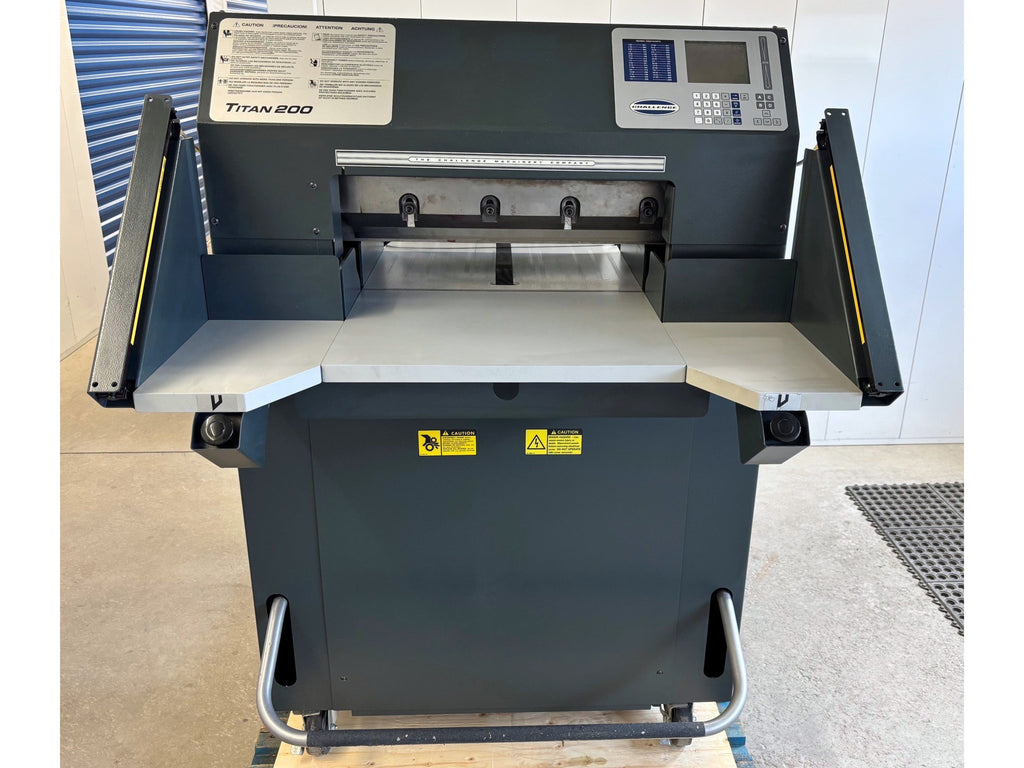

Fully reconditioned Challenge Titan 200B. This fully programmable hydraulic paper cutter is in excellent condition and ready for immediate production. It will include 2 knives, tools, manuals and our 100 day parts and labour warranty - $13,495.00
User-friendly Challenge menu-driven LCD screen, fully programmable backgauge control with
99 channels, 9,801 total cut memory
• Variable mode data entry (fraction, decimal, metric)
• Automatic fraction to decimal calculation
• Electronic Clamp Pressure Control – (programmable per cut with TC option)
• Maintenance free red LED cut line light
• Table slot closure device
• Hydraulic cutting & clamping – motor runs only during cutting cycle
• Rugged steel & cast iron construction
• Lockable heavy duty casters for portability
• Top of machine offers large 14.5” x 36”/36.8 cm x 91 cm) work surface
SPECIFICATIONS
- Cutting Width 20”/50.8 cm
- Clamp Opening 3-1/4”/8.3 cm
- Clamping Force: minimum 1,250 lbs/563 daN, maximum 2,500 lbs/1,125 daN
- Min Cut (w/out false clamp plate) 1/2”/13 mm
- Min Cut (with false clamp plate) 1-7/8”/48 mm
- Table In Front of Knife 15-1/4“/39 cm
- Behind Knife 20”/50.8 cm
- Table Height 36”/91.4 cm
- Metal side tables (light beam only) 8” x 12”/21 x 31 cm
- Overall Width 39-5/8”/100.6 cm
- Overall Length 50-7/8”/129.3 cm
- Overall Height 53”/135 cm
- Will pass through door (assembled) 39-3/4”/101 cm (side tables, light beams, & power switch out) 36-1/4”/92 cm (table/treadle/light beams out) 29”/73.7 cm
- Net Weight (approx.) 800 lbs/363 kg
- Shipping Weight (approx.) 980 lbs/444 kg
Sydney Stone is your #1 source for reconditioned equipment in Canada.
All reconditioned equipment is restored to factory tolerances, comes with all tools and manuals that would have been included with the machine when it was sold as new, as well as our 100-day Parts & Labour Warranty*.
Demo Model equipment comes with our 1-Year, Sydney Stone 5-Star Extended Maintenance Agreement* at no additional charge.
We take care of your equipment so you can take care of your business. Be confident in your investment! Just another way that Sydney Stone is Giving Meaning to Expertise.
*Subject to geographic location. Contact sales@printfinishing.com for more information.
