Description

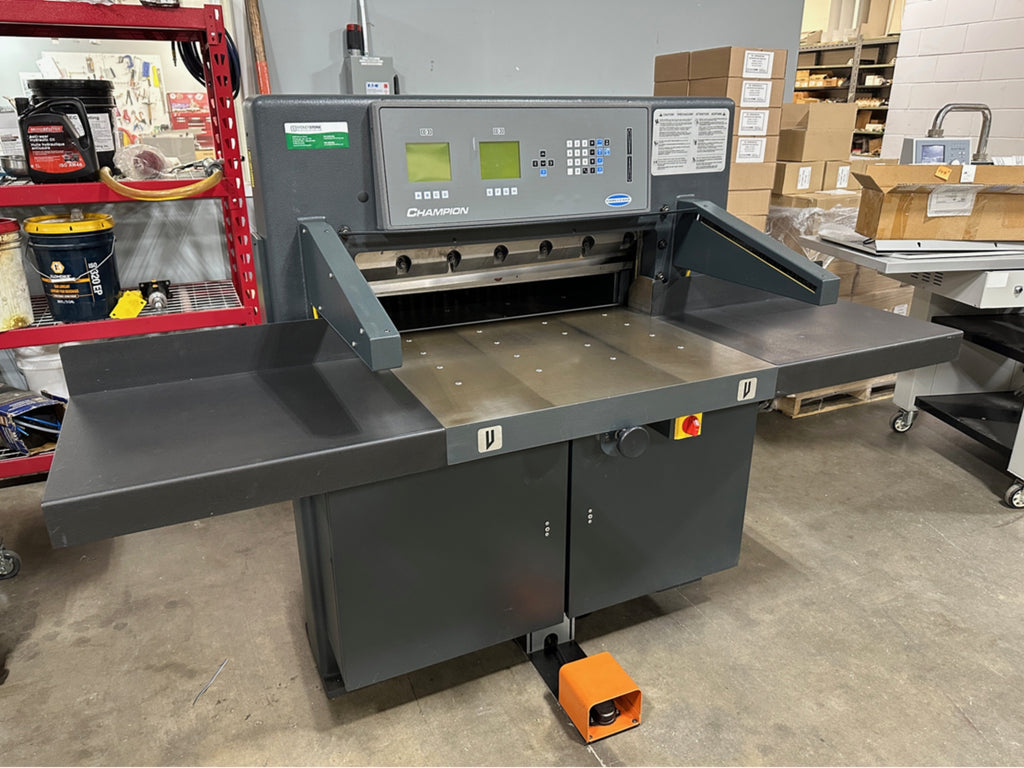

This fully reconditioned 30.5 Hydraulic paper cutter is in excellent condition and features and air table and large side tables.
Includes 2 knives / tools / manuals and warranty - $ 26,995.00
Champion 305 XG
- Visually-Cued LCD Graphic Screen
- 99 Channel, 9,801 Total Cut Memory
- Menu-Driven LCD Data Screen
- Electronic Clamp Pressure Control
- Alpha/Numeric Electronic Keypad
- Variable Mode Data Entry
- 99 Channel, 3,465 Total Cut Memory
- Program Lockout
- Variable-Speed Pinpoint Backgauge Control
- Computer Diagnostics
SPECIFICAITONS
- Maximum Cutting Width: 30-1/2″ / 77.5cm
- Minimum Cut: without false clamp plate: 3/4″ / 19mm
- with false clamp plate: 2″ / 5cm
- Maximum Cut Depth: 30-1/2″/ 77.5cm
- Clamp Opening: without false clamp plate: 4″ / 10.2cm
- with false clamp plate: 3-3/4″ / 9.5cm
- Clamping Method: Hydraulic and Manual
- Maximum Clamping Force: 5000 lbs / 2200 daN
- Backgauge Control: Power and Manual
- DIMENSIONS
- Table Space: in front of knife: 25″ / 63.5cm
- behind knife: 30-1/2″ / 77.5cm
- Table Height: 37″ / 94cm
- Overall Height: 58″ / 147cm
- Overall Width (with side tables): 78-1/2″ / 200cm
- Overall Width (without side tables): 48-1/2″ / 123cm
- Overall Length: 63″ / 160cm
- Mounting Dimension: 41-1/2″ / 105cm
- Door Pass-through: assembled 49″ / 125cm
- with table/treadle removed 42″ / 107cm
- with table/treadle/power unit removed 19″ / 49cm
- Net Weight (approximate): 2,550 lbs / 1157 kg
- Shipping Weight (approximate): 2,750 lbs / 1247 kg

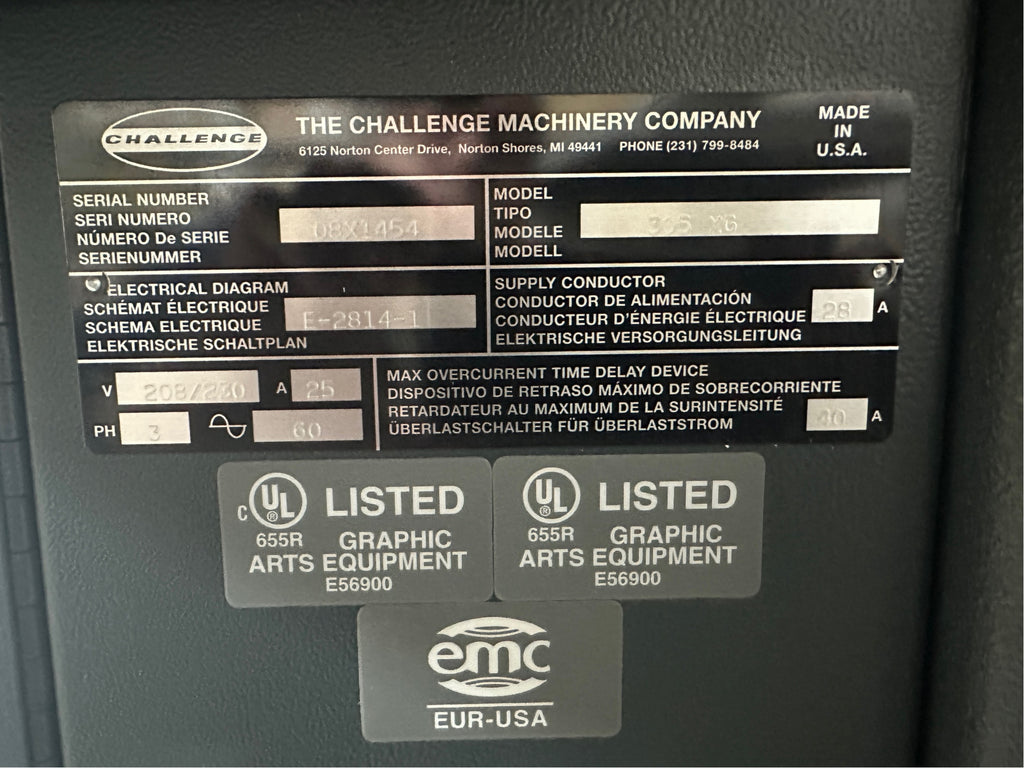

- ELECTRICAL: 5 H.P. Three Phase, 60 Hz, AC, 208/230 Volts, 25 Amps (service size 40 Amps) or
- ULc. Listed
Sydney Stone is your #1 source for reconditioned equipment in Canada.
All reconditioned equipment is restored to factory tolerances, comes with all tools and manuals that would have been included with the machine when it was sold as new, as well as our 100-day Parts & Labour Warranty*.
Demo Model equipment comes with our 1-Year, Sydney Stone 5-Star Extended Maintenance Agreement* at no additional charge.
We take care of your equipment so you can take care of your business. Be confident in your investment! Just another way that Sydney Stone is Giving Meaning to Expertise.
*Subject to geographic location. Contact sales@printfinishing.com for more information.
