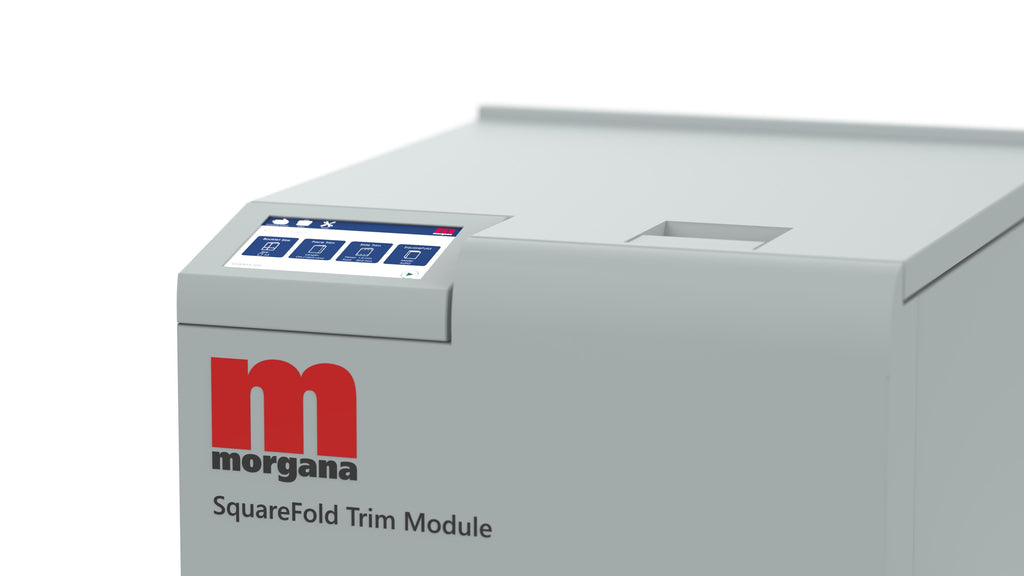

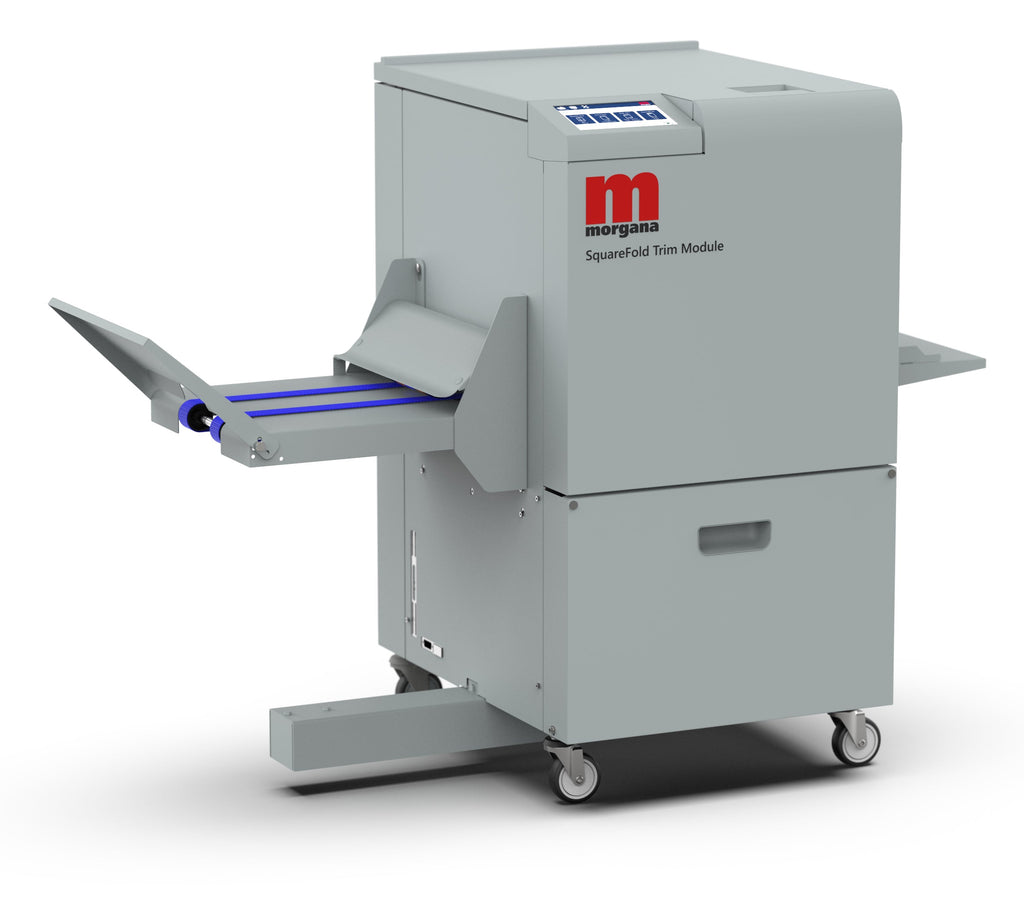

Morgana SquareFold Trimmer


Combines square folding and trimming in one module.
An industry first.

Print needs to work harder and smarter than ever before. The all NEW Morgana SFT SquareFold Trimmer is the perfect complement to any CRD or office looking to add value to the finished booklet.

The industry-first Morgana SFT delivers two functions in one – booklet square folding and trimming. Simply insert a stapled and folded booklet and out comes a professionally finished document – with a sharp square folded spine and neatly trimmed front edge.

Available Options Are:

Extended delivery conveyor

Long Sheet Kit


Operator Assisted Three-Side Trimming

Not all customers have access to a guillotine or the time to use one for short run jobs.

The SFT module can also process booklets for bleed trimming book by book in an operator assisted process. Full bleed booklets are now an option for small CRD’s or office installations.


The look of a Perfect Bound book

The module is equipped with the heavy-duty SquareFold module you find in our larger Booklet Making Systems. This enables booklets made from a wide variety of paper stocks and sizes to have a perfectly formed spine. It also makes the booklets easier to stack.

The result is the look and feel of a Perfect Bound book – At a fraction of the cost.


SquareFold Trimmer specifications

Paper weight (Min)

63gsm / 17lb bond

Paper weight (Max)

350gsm / 130lb cover

Sheet count (Min)

1 folded sheet

Sheet count (Max)

50 stapled and folded sheets - 25 sheets using side trimmer

Feeded book size W x L (Min)

148.5 x 105mm / 5.85” x 4.14”

Feeded book size W x L (Max)

320 x 310mm / 12.6” x 12.2”

Finished book size W x L (Min)

148.5 x 100mm / 5.85” x 3.93”

Finished book size W x L (Max)

320 x 310mm / 12.6” x 12.2” (bypass)

318 x 309mm / 12.5” x 12.16” (trimming all sides)

Face trimming (Min)

1mm / 0.039”

Face trimming (Max)

210mm / 8.26”

Side trimming (Min)

1mm / 0.039” per side

Side trimming (Max)

24mm / 0.94” per side

Duty cycle

Average 20.000 booklets/month

Colour: Grey
Custom Stock Status: Ships Immediately
Electrical: 220v60hz
Manufacturer: Morgana
