High-capacity and ultra-reliable feeding

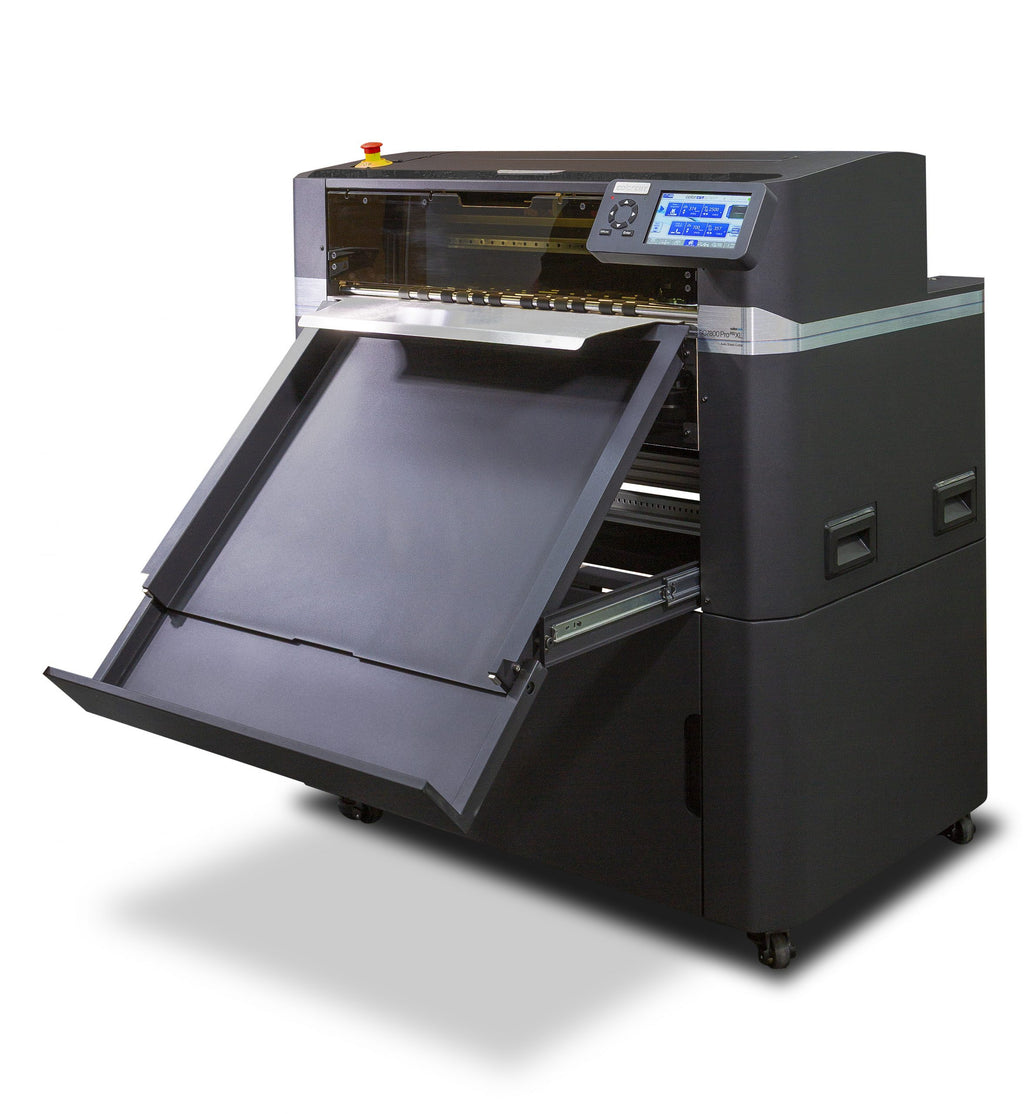

The SC7800 Pro-RS XL was designed to deliver unattended operation with particular attention paid to the feeding system to ensure class-leading performance for card or even tricky laminated sheets. The auto feeder accepts up to 900 sheets, which automatically raises and lowers as required. To prevent sheets curling (as a result of a constant air flow to the sides), the machines use a dual automatic air blade that fires a blast of air momentarily into the front of the stack just as the advanced vacuum feed belt lowers to collect the top sheet. To further provide a reliable feed, the vacuum feed belt lifts the media carrying any sheets not pre-separated by the air blade past a pair of dexterous separation fingers which dislodges them. Finally, before advancing the sheet into the cutting engine, the vacuum feed belt ‘jogs’ briefly against the rear paper stop, creating a natural curve that helps ensure even difficult media feeds faultlessly.

Triple tool power – digital accuracy

The digital triple tool head includes passive contour/drag cut and patent pending-dual (opposing) active creasing wheels applying force individually, for both the cutting and creasing tools.

This combination of tools provides a much wider media handling capability and more defined, smoother crease for thick card up to 450 micron. The individual tool actions are controlled via the included ColorCut Pro 5 Production Studio software.

In common with the entire ColorCut family, the tools can be set to apply exact amounts of pressure and speed, along with total control over the application of cut, crease or perforation of vector artwork lines drawn in Adobe® Illustrator® or CorelDRAW®.

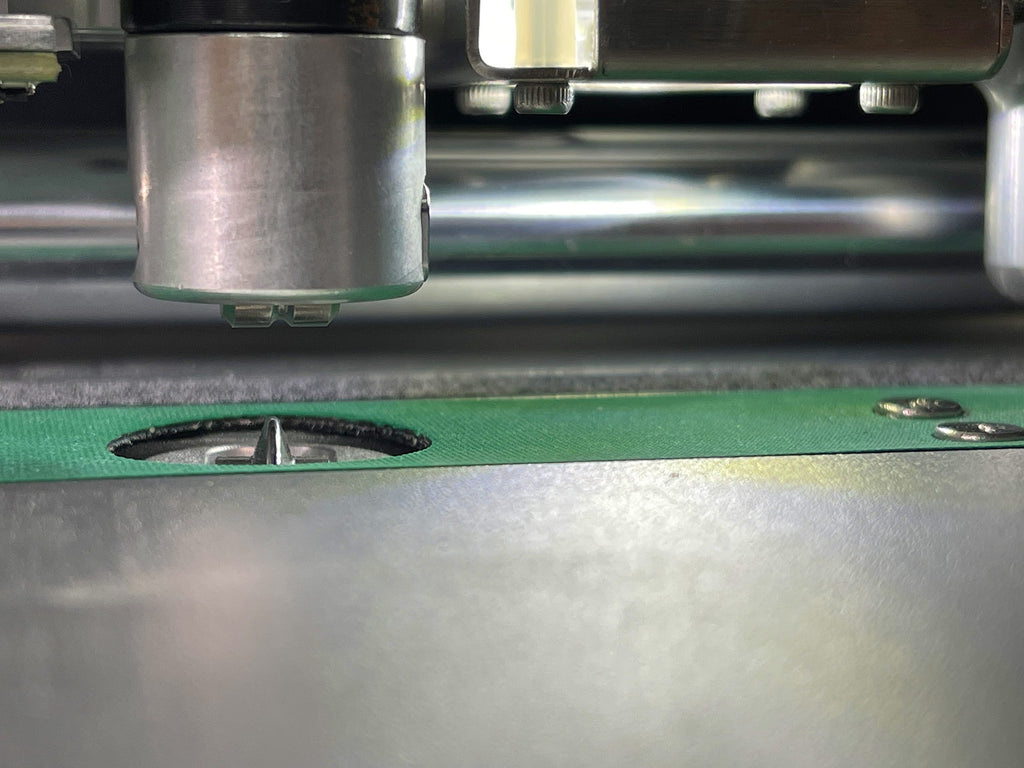

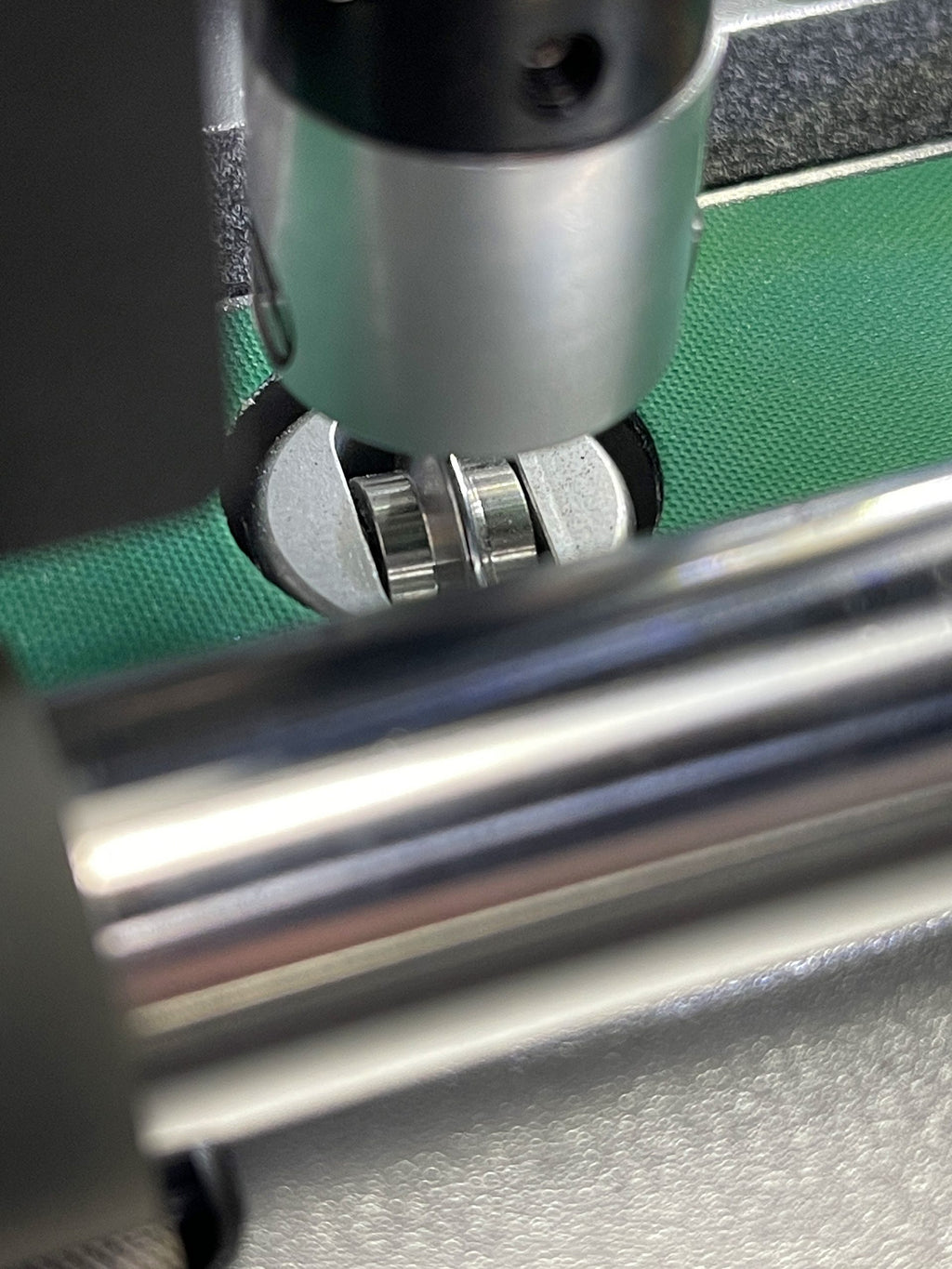

Dual Opposing Tangential technology enables the SC7800 Pro-RS to move a creasing wheel AND a separate creasing groove either side of your media simultaneously. The opposing tools, deliver a traditional looking ‘Male/Female’ crease to enable a more defined, smoother precise crease.

Ai control for automatic job retrieval

The SC7800 Pro-RS XL models are built on the foundation of our next generation of Ai based ColorCut Pro software delivering new features, functionality, control and automation, redefining how automated cutters can be used, easily, simply and autonomously by providing 2 modes users can employ for cutting files.

In DIRECT mode: ColorCut Pro offers unparalleled flexibility and control over cutting and production from the connected PC. When creating jobs, the ColorCut Pro Client plugin applies an auto-assigned QR code to each design, whilst auto-saving the cutting file (editable) to the ColorCut Pro Job Library.

In HELD mode: ColorCut Pro stores your job parameters, wrapping all the required settings into a custom held mode cut file, that can be transferred to a storage device on the cutter. This enables standalone operation, without the need for the main PC and can be cut at a later date by any operator. The cutter checks the QR code on each sheet, retrieves the associated cut file and proceeds to cut and crease as required – even if the sheet is presented at 180°, reducing operator errors.

Max media size (XL model): 20.47 × 29.13 in
Effective contour cutting area (XL model): 20.08 × 27.56 in
Crease capability: Reverse side capable. Dual opposing tangential creasing wheel & groove delivering up to 2.5 kg (2,500 gf) for max 0.018 in
Auto-sheet capacity: 4.13 in stacker height (up to 1,000 sheets of 80 gsm media)
Max weight: 66.14 lb
Type of cut: Die-cut (with tags) & perf
Max speed: 41.73 in/sec
Weight (unpacked) including stand: 429.91 lb
Power supply: 100–240 V, 50/60 Hz, 140 W average (320 W peak)
