Description

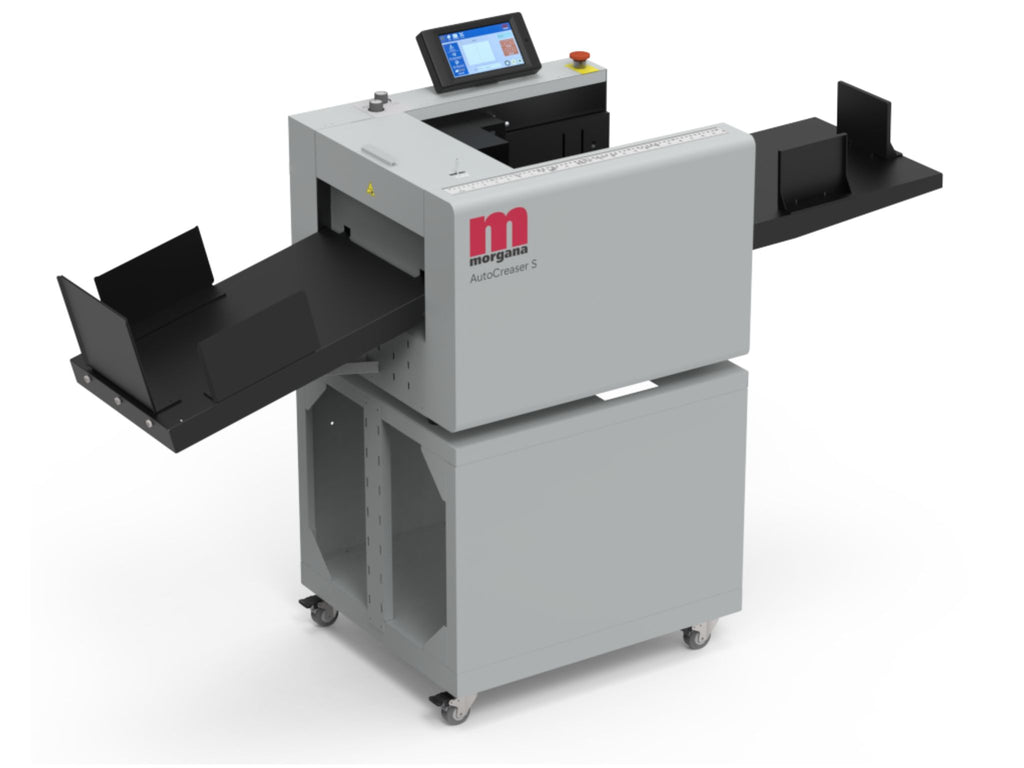

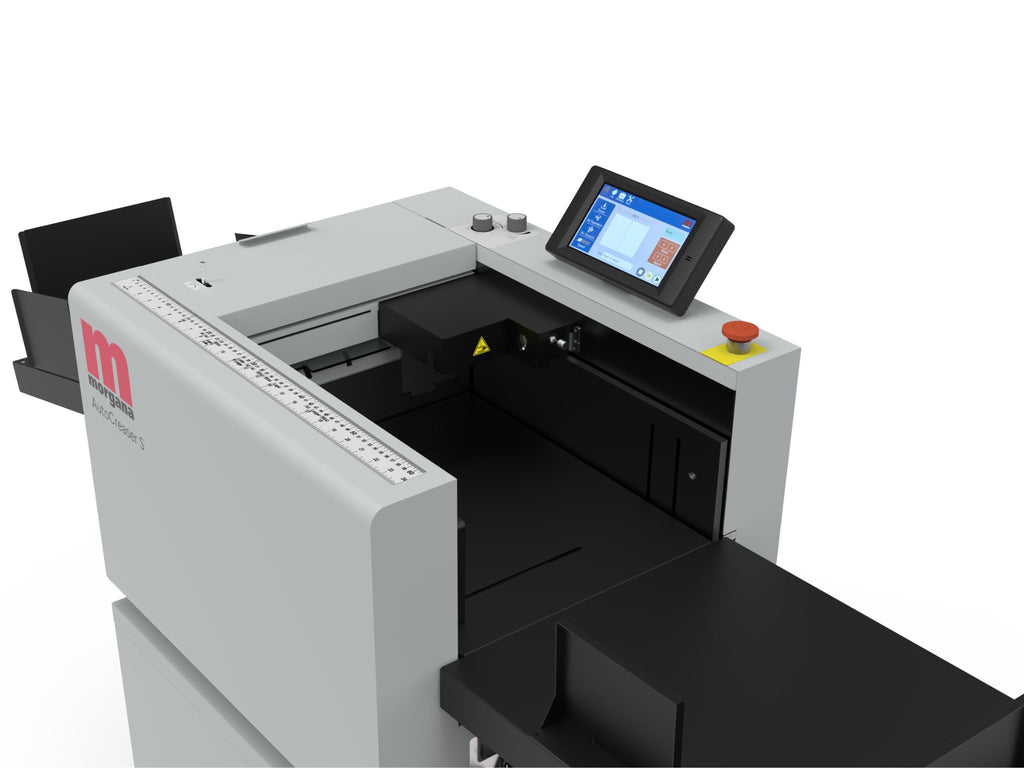

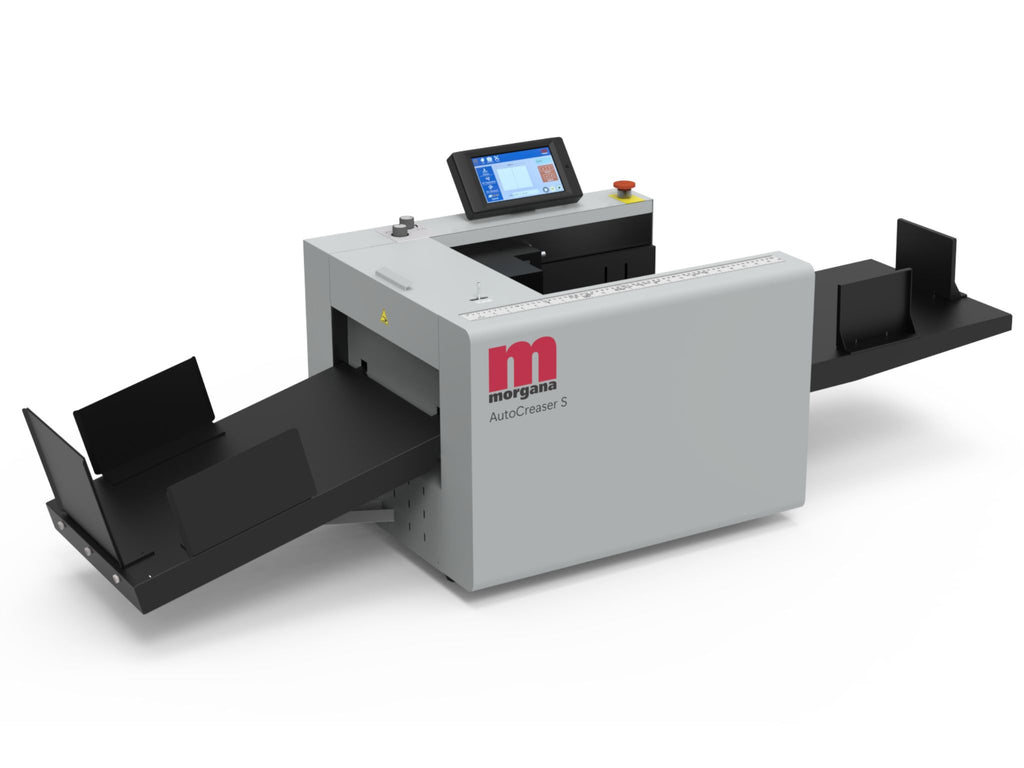

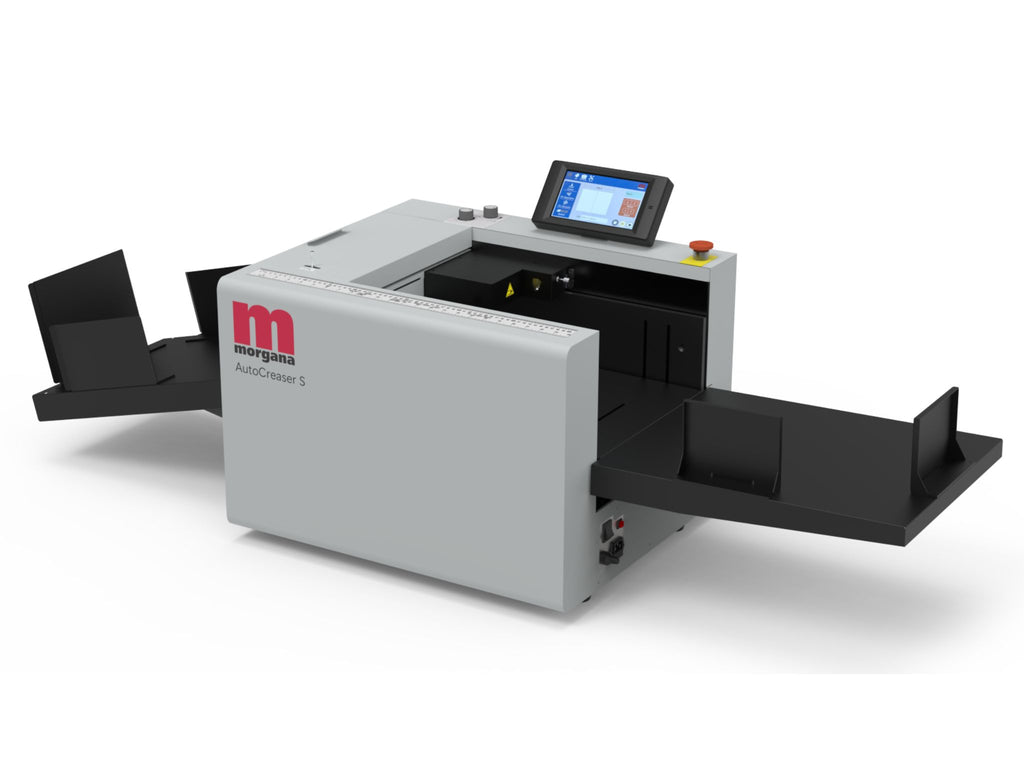

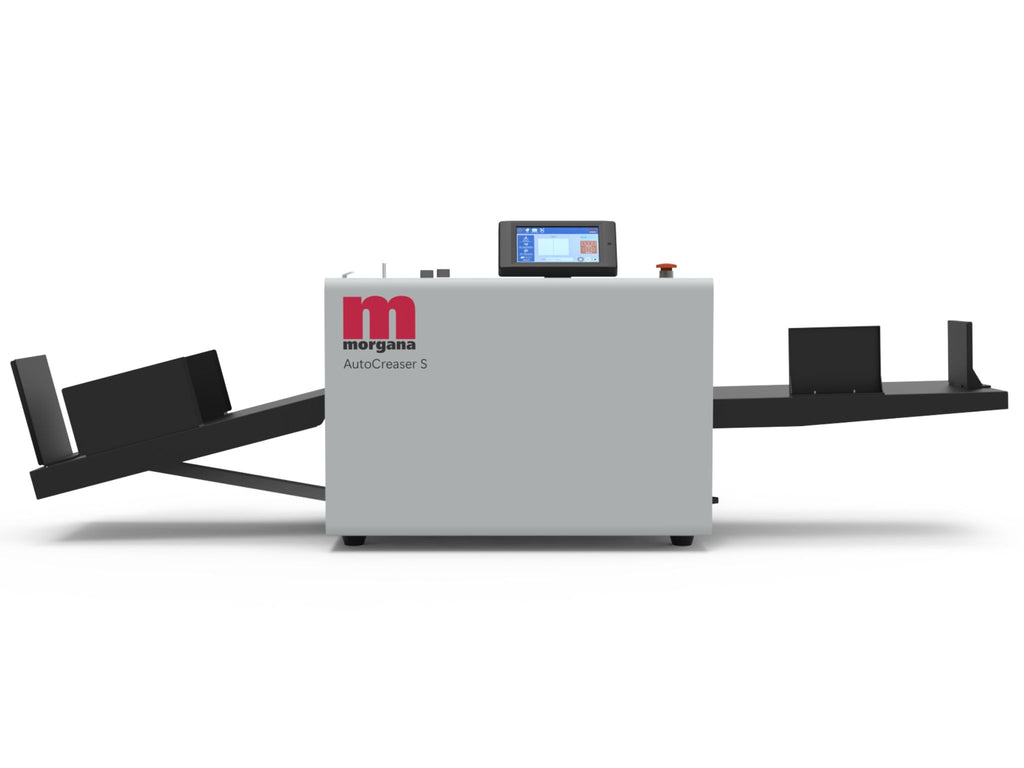

The Morgana AutoCreaser S is a new affordable addition to Morgana range of highspeed creasers, handling format up to 13×35”. With its compact size, crease-depth adjustment feature “on-the-fly”, intuitive SmartScreen controls of all main functions together with cost-competitive options such as combined cross- & inline-perforation kit, the AutoCreaser S truly throws punches well above its weight.
The AutoCreaser S is ideally suited for a wide array of short-run jobs facing a service provider in any print finishing environment. Paired with the market-leading Morgana support and service offering, the feature-packed, intuitive and efficient finishing solution that is the AutoCreaser S is bound to impress.
Specifications
Productivity:
Three fixed speeds 3000/4000/5000 SPH SEF 1-crease A4 (8.5 x 11”)
Feed technology:
Top feed Vacuum Belt & lead-edge Air separation
Max. sheet size:
13 x 27.5”
13 x 35” with optional tray/table extensions
Min. sheet size:
4 x 6”
Subject to media characteristics & reduced stack height
Load capacity:
4”
Paper range - Max.
0.014” (~350gsm)
Perforation up to 0.010” (~250GSM) subject to media characteristics & format
Paper range – Min:
~0.004” (~80gsm)
Down to 0.003" (~60gsm) subject to media characteristics, format & reduced stack height
Max. # no. creases per sheet:
x32
Min. distance between creases:
Between creases 0.080", lead-edge to crease 0.040"
Job library:
Save up to 36 bespoke jobs with naming function
Job templates:
Pre-defined (editable) templates of x11 most common jobs
Repetitive accuracy:
+/- 0.012"
Single sheet feed-control:
Yes
Inline Perf-strike capability:
No
Power requirement:
100-240 VAC; 5-2.5A; 50-60Hz (1-phase)
Dimensions:
D22” x L65” x H23” Excluding Cabinet or Extension Trays
D22” x L82” x H42” Including Cabinet and Extension Trays
Weight:
Machine 184lb
Cabinet/Stand 42lb
Optional Kits:
1) Cabinet/Stand
2) Cross Perf Blade Bar (TPI 13/Medium) + x2 Inline/Rotate Perf (TPI 9/Medium) Minimum distance between Inline Perf lines 25mm
3) Narrow Crease Blade: 0.75mm (~0.030”) Std Crease Blade included is 1.20mm (~0,047”)
4) Tray Extension Kit; for media up to L900mm (35”)
Manufacturer: Morgana/Plockmatic
