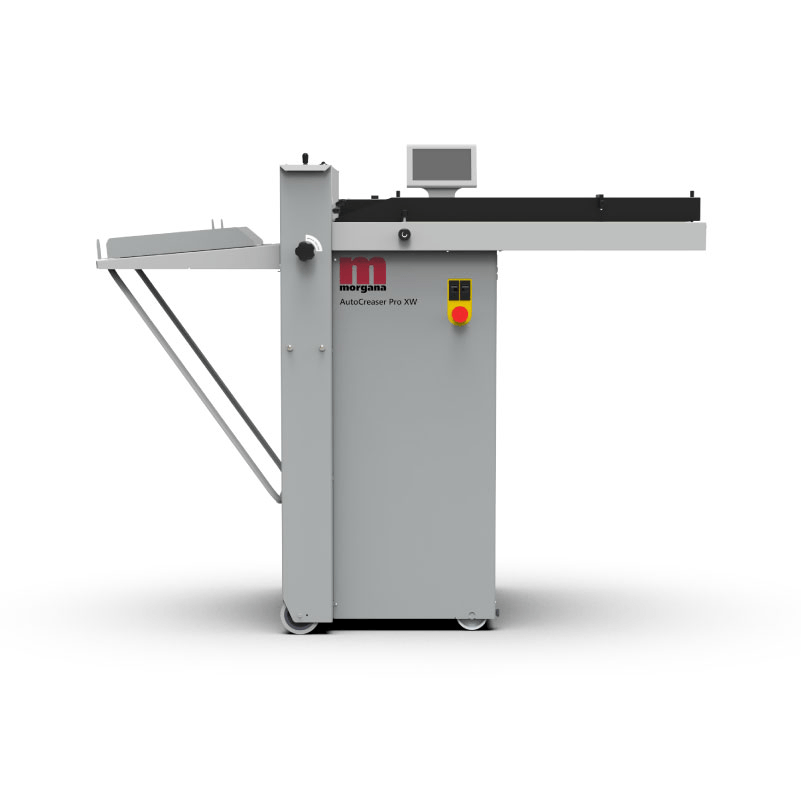

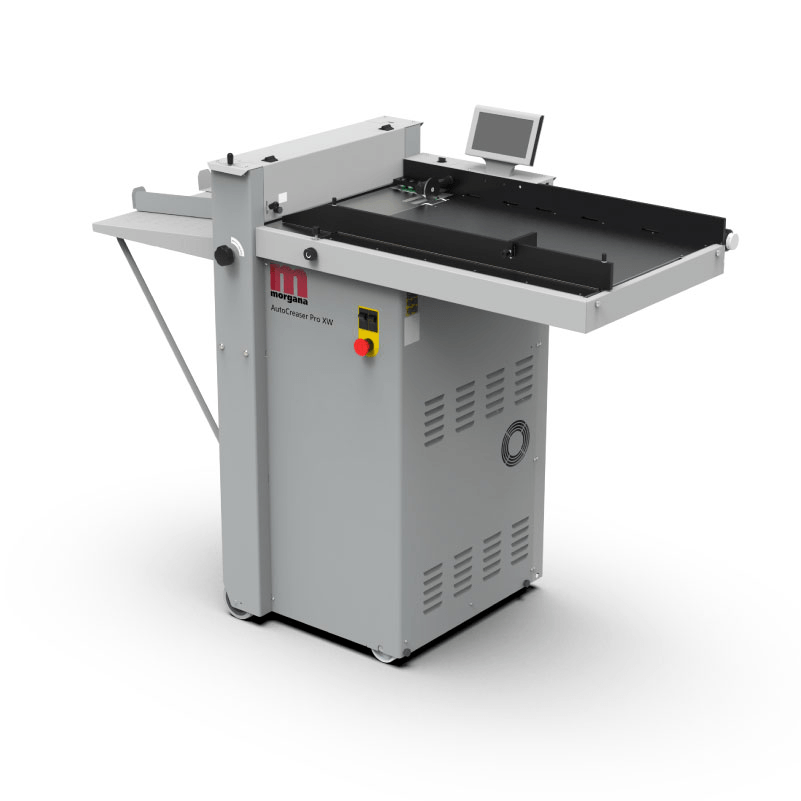

Morgana AutoCreaser Pro XW

MorganaSKU: MOR 9120

Sale price$22,995.00



The AutoCreaser Pro XW is the latest in Morgana range of high-speed creasers designed to eliminate the problem of cracking that occurs when folding digitally printed output. It is equally effective when creasing conventionally printed card, laminated or cross-grained stock.

Download Brochure

Intuitive Display

The intuitive 7” SmartScreen controls all the main functions of the AutoCreaser Pro XW. Simply key in the sheet length (popular sizes are pre-set), touch the fold type for the finished product (letter, gate etc) and press the start button. The AutoCreaser Pro XW will automatically calculate where the creases need to be and set them accordingly. Any minor changes to the crease position can be made by touching an arrow in the relevant direction.

Full cross and part perforation

Linear perforation is standard with the machine, with an option to add full cross and part perforation, up to 500mm / 19.7” in width. This allows production of a wide range of perforated applications including tear-off vouchers and tickets.

EasyBlade System

The machine is now equipped with the Morgana EasyBlade system, which allows easy, tool free removal and change.

The quick release mechanism enables the blade to be easily removed or changed between jobs. This is useful, for example, when changing between a perforation job and a creasing job and can now be done (without tools) in less than 30 seconds.

The AutoCreaser Pro XW uses an identical mechanism to all other creasers in the range including the DigiFold Pro and is guaranteed for life. With thousands of these mechanisms installed throughout the world our creasing technology is unparalleled for both performance and longevity.

Manufacturer: Morgana/Plockmatic
Model: Autocreaser PRO XW
Minimum Sheet Size: 5.5” x 8.5”
Maximum Sheet Size: 19.7” x 27.5”
Paper Thickness: up to 0.0157”
Sheets per Hour: up to 8
500: 500
Custom Stock Status: 7-10 days
