Matrix 530DP Double-Sided Automatic Pneumatic Laminator


Matrix laminators will do the entire job from start to gloss. Suitable for both digital and litho output this 19.6” width machine can process a variety of foils as well as two sided work OR single sided work with OPP laminating films and separate the sheets so that they lay flat and ready for the next finishing stage, no manual cutting or added labour.

How to foil and spot coat with your Matrix laminator... (optional motorized wind up required)

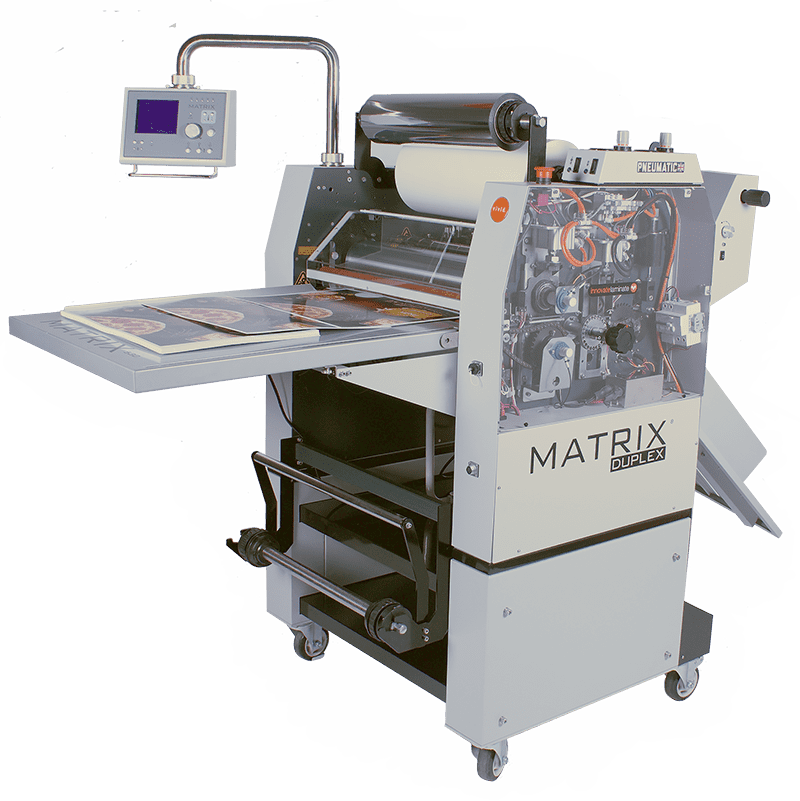

The new Matrix Duplex is an incredibly cost-effective foiling and laminating system that allows printers to apply a wide variety of foils, laminate single-side, double-side and encapsulate their work, in-house.

Available as either a full system or a modular retrofit for the multilingual MX-530, the Duplex will laminate both sides of the printed sheet at the same time, halving your production time. Whether you gloss the front and matt the back, or use Anti-scratch film on both sides of the print, changing rolls takes a matter of minutes.

The Duplex option is produced in Britain which shortens our supply chains and lead times.

We’ve used the highest quality components within the system, including Omron switches, Schneider electrics and British built Bambi compressors.

Encapsulating Speed (mm/min / inches/min)     1000 / 39
Max. Laminating Speed (m/min / feet/min)     10 / 33
Max. Encapsulating Width (mm / inches)     320 / 13
Max. Laminating Film Width (mm / inches)     500 / 20
Paper Thickness (gsm / lbs)     135+ / 90
Warm-up Time (mins)     10
Laminating Temperature Range (°C/°F)     0-140 / 32-284
Control Panel     Multilingual LCD
Pressure Adjustment     Pneumatic
Film Core (mm / inches)     77 / 3
Power Supply AC (v, 50Hz)     220/240
Power Supply AC (v, 60Hz)     240
Power Supply Required (Amps)     -
Power Consumption (W)     4500
Overall Dimensions - Width (mm / inches)     900 / 35
Overall Dimensions - Depth x Height (mm / inches)     2050x1400 / 81x55
Gross Machine Weight (Kg / lbs)     250 / 551

Key Features

    Pneumatic pressure

    Laminate both sides at the same time

    Retrofits to the MX-530

    Easy-to-use control panel

    Anti-curl technology

    Semi-automatic feed

    Automatic seperator

Great for use in

    Commercial printers

    Digital printers

    Copy and print shops

Ideally suited for

    Business cards


    Book covers



Colour: Grey
Custom Stock Status: Ships Immediately
Electrical: 220-240V / 30 Amp / 1 Phase
