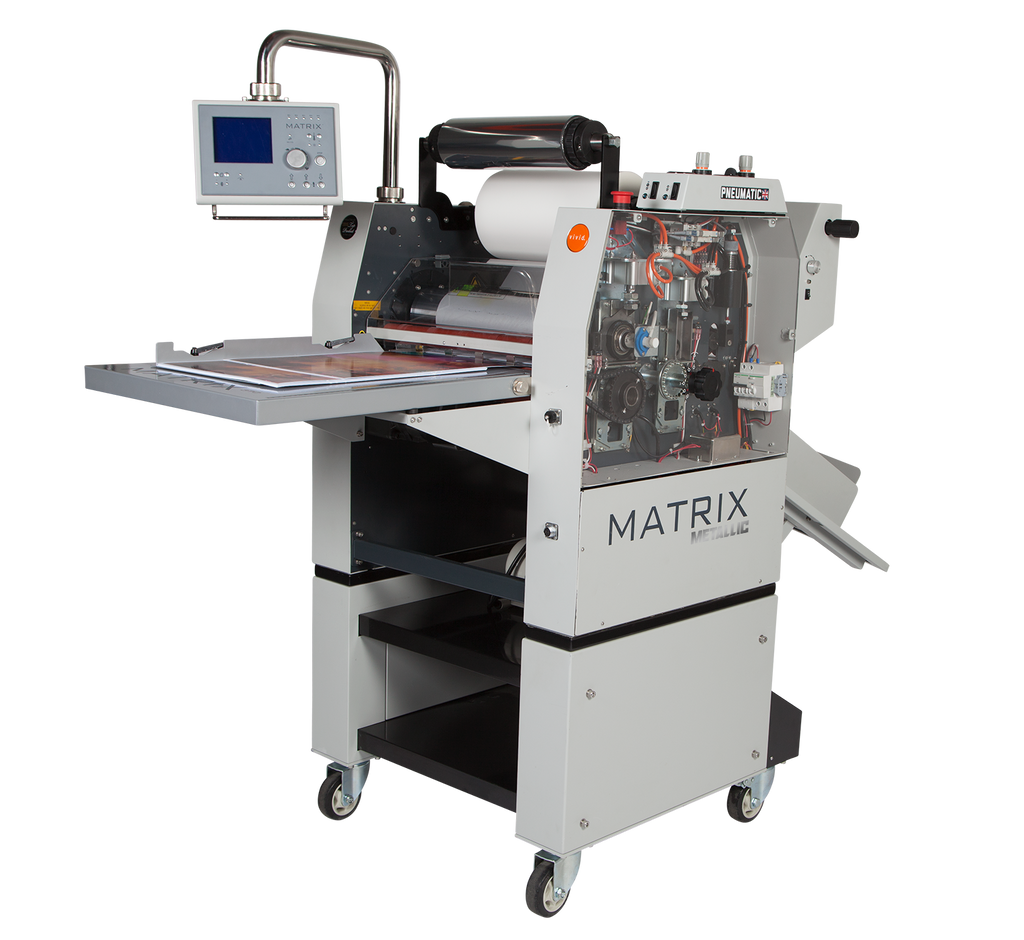

Matrix 370P Single-Sided Automatic Pneumatic Laminator


Description

Matrix laminators will do the entire job from start to gloss. Suitable for both digital and litho output this 13” width machine can process a variety of foils as well as two sided work OR single sided work with OPP laminating films and separate the sheets so that they lay flat and ready for the next finishing stage, no manual cutting or added labour.


The Matrix Pneumatic can run up to twice the speed of our standard systems. Printers can foil and laminate work even faster to get the job finished and back to the customer.

Pneumatic pressure rollers allow you to laminate certain substrates up to 50% quicker, saving both time and cost.

The Pneumatic option is produced in Britain which shortens our supply chains and lead times. We’ve used the highest quality components within the systems, including Omron switches and Schneider electrics.

Add a Matrix Omni-Flow 370 (SRA3) Deep Pile Feeder for fully automated laminating or foiling.

Specifications
Max. Laminating Speed (m/min / feet/min) 10 / 33
Max. Laminating Film Width (mm / inches) 340 / 13
Paper Thickness (gsm / lbs) 135+ / 90
Warm-up Time (mins) 10
Laminating Temperature Range (°C/°F) 0-140 / 32-284
Control Panel Multilingual LCD
Pressure Adjustment Pneumatic
Film Core (mm / inches) 77 / 3
Power Supply AC (v, 50Hz) 220/240
Power Supply AC (v, 60Hz) 240
Power Supply Required (Amps) 13
Power Consumption (W) 2200
Foiling, Holographic, Glitter Lamination & Spot UV-style effects

Yes

Dimensions - Width (mm / inches) 800 / 31
Dimensions - Depth x Height (mm / inches) 1800x1400 / 71x55
Gross Machine Weight (Kg / lbs) 210 / 463


Great for use in

    Commercial printers

    Digital printers

    Copy and print shops



Ideally suited for

    Business cards

    Menus

    Book covers

    Brochures

    Flyers

Colour: Grey
Custom Stock Status: Ships Immediately
Electrical: 220-240V / 30 Amp / 1 Phase
