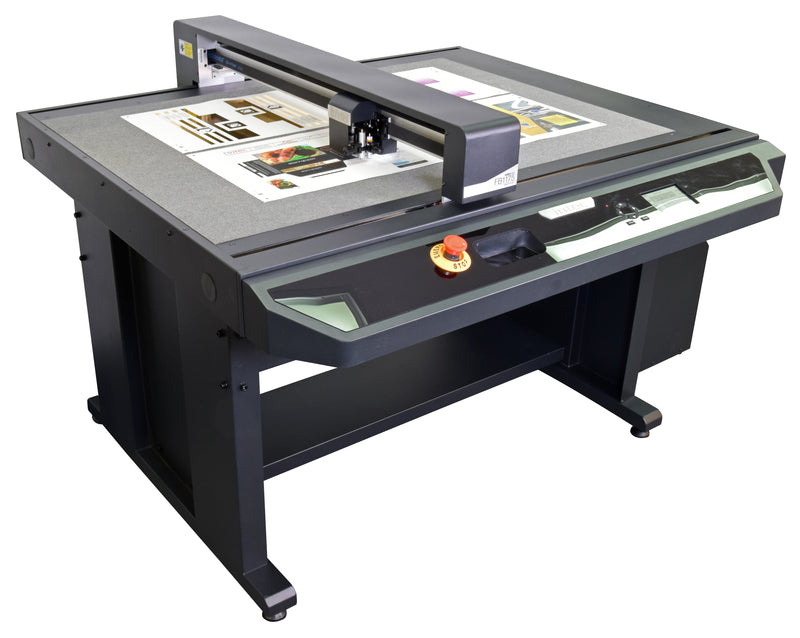

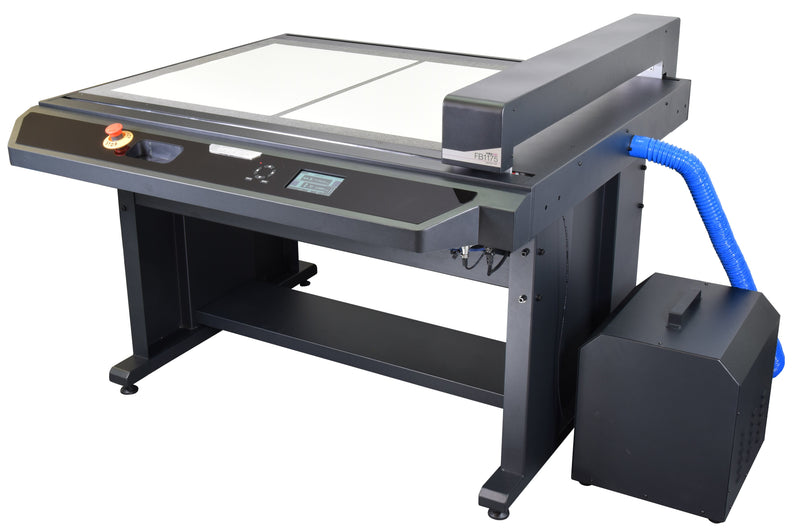

Morgana ColorCut FB1175 B1 + Digital Die Cutter

IntecSKU: Intec FB1175

Sale price$20,695.00


The NEW flagship ColorCut FB1175 incorporates a B1+ cutting table for large format sheet cutting with the very latest in advanced high speed servo motors for accurate, fast and productive cutting.  This new flagship model also incorporates an enhanced dual tool cutting head delivering up to 1,500gf pressure for creasing and 1,200gf for cutting – and can cut through paper/card of up to 1,000micron, which opens up new possibilities through its ground breaking design.

Download Brochure

Key Features
  • B2+ table takes SRA2 – or 2 x SRA3 and smaller
  • No dies required – cut and crease any shape on demand
  • Dual-tool head for same time cutting (1.2kgf) and creasing (1.5kgf)
  • Blistering performance of up to 1,200mm/second
  • Unparalleled accuracy using latest servo technology
  • Cuts mixed jobs on table using QR coded auto job recognition to automatically retrieve associated cut files
  • Cuts through up to 1,000 micron/800gsm paper/card, softboards and films to any shape
  • Kiss-cuts perfect sheet labels of any shape
  • CCD Video Camera driven to accurately follow vector cut/crease lines drawn in Adobe® Illustrator® & CorelDRAW®
  • Vacuum suction media hold down table for even the smallest of items
  • Effective cutting area 490 x 735mm
  • Cut mixed job sheets for increased productivity on the bed, at the same time!
  • Complete with dedicated ColorCut Pro cutting & creasing software, with Adobe® Illustrator® or CorelDRAW® plugins
  • Sheet Labels
  • Packaging
  • Sheet card
  • Prototypes

Manufacturer: Intec
Model: FB-775
Maximum Media Area: 22.83” x 31.49”
Cutting Area: 18.89” x 28.14”
Media Handling: 750W vacuum suction
Tools: 2 tool positions
Maximum Cutting Depth: 1000 micron/800 gsm
Maximum Speed: Fast: 1200mm/s; Standard: 960mm/s; HD: 750mm/s
Electrical: 110V/15A
Custom Stock Status: Ships 7-10 days
