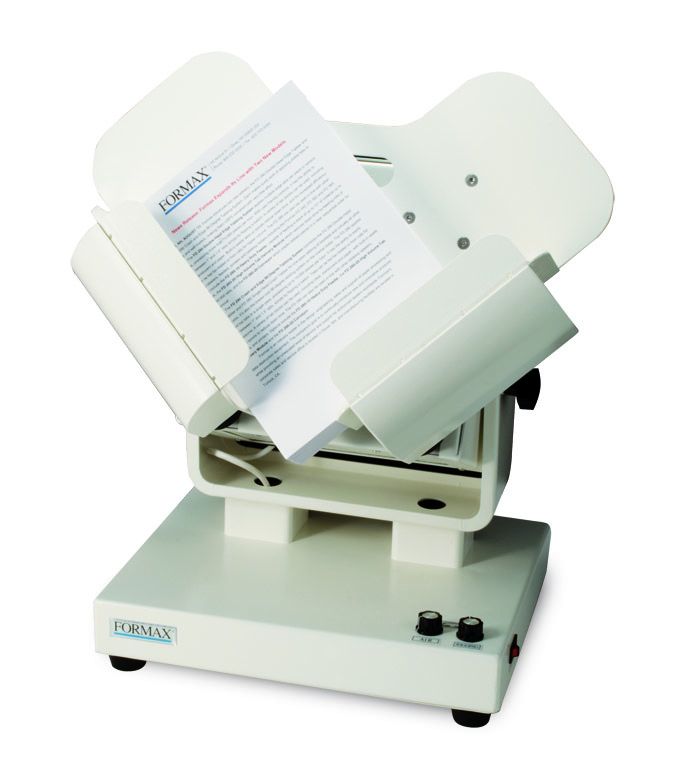

Formax FD402TA1 Tabletop Air Jogger

PrintfinishingSKU: formax FD402TA1

Sale price$2,295.00


The FD 402TA1 Tabletop Air Jogger is a compact solution for those who need jogging power in a smaller space, while offering the ability to jog 12” x 18” paper.

Download PDF


The FD 402TA1 offers a jogging solution for those with limited space. Variable vibration speed and air pressure controls allow press sheets and digital printouts to be air-dried immediately, ready for further processing.
It has a bin capacity of up to 940 sheets and is designed with a vertical-to-horizontal tilt feature to help keep larger paper stacks from bending. The FD 402TA1 is ideal for smaller print shops and production environments.


   •  Align, Dry, Remove Static in One Step

   •  Variable Speed Control: Up to 2,500 vibrations per minute

   •  Variable Air Pressure Control: Up to 29,000 rpm, reduces jogging time

   •  Tilting Jog Bin: V-shaped bin adjusts from vertical to horizontal to accommodate various operating requirements, including large format paper stacks, and criss-cross stacked piles

   •  High Capacity: Jogs up to 940 sheets 20#

   •  Operating Modes: Vibrate and Air, Air-only and Vibrate-only


   •  Bin Size: 3.75” D x 20.375” W

   •  Media Size: 5” x 7” Min - 12” x 18” Max

   •  Sheet Capacity: Up to 940 sheets 20#

   •  Dimensions: 21” W x 15” L x 23” H

Custom Stock Status: Ships Immediately
Electrical: 110V/120V 50/60 Hz
recommended 4A dedicated line (110V)}: recommended 4A dedicated line (110V)
