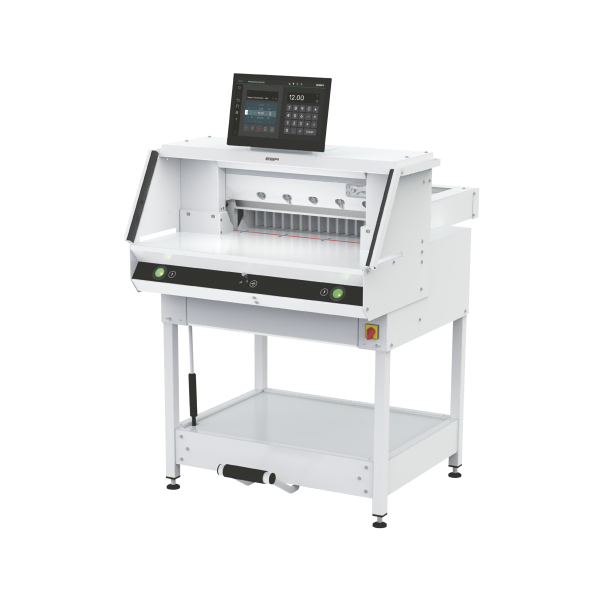

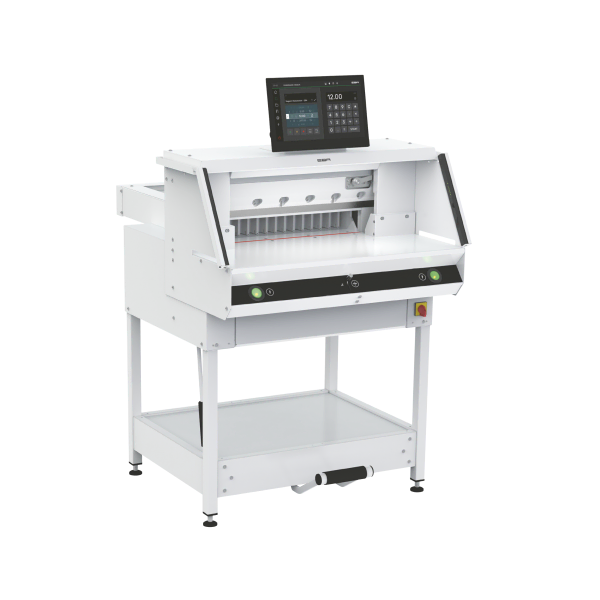

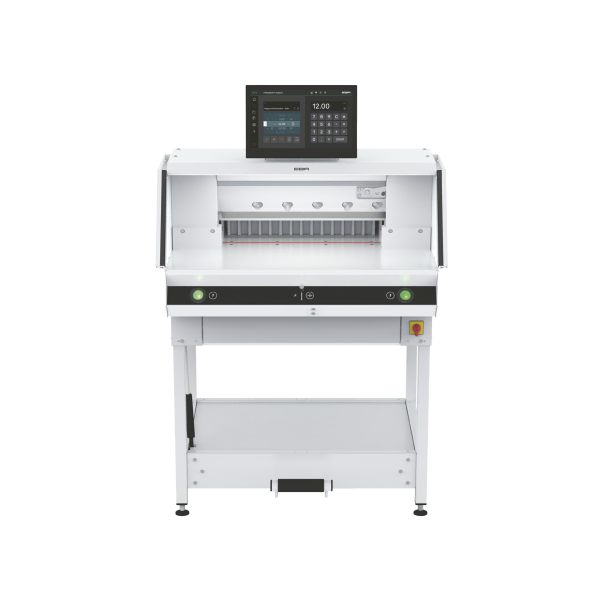

EBA THE 68 Hydraulic Paper Cutter


Description


THE 68

    Next-generation programmable powered guillotine – for increased efficiency and productivity by working smarter. With IR light beam safety curtain and hydraulic clamp drive.

    Well-designed digital functions, intuitive controls, and easy to use: THE 68 makes guillotine work easier and more satisfying than ever – even on demanding projects. Enjoy optimized workflows and flawless precision.

    • Faster clamping and cutting than the previous series
    • Higher maximum clamping pressure than the previous series
    • Faster backguage than the previous series

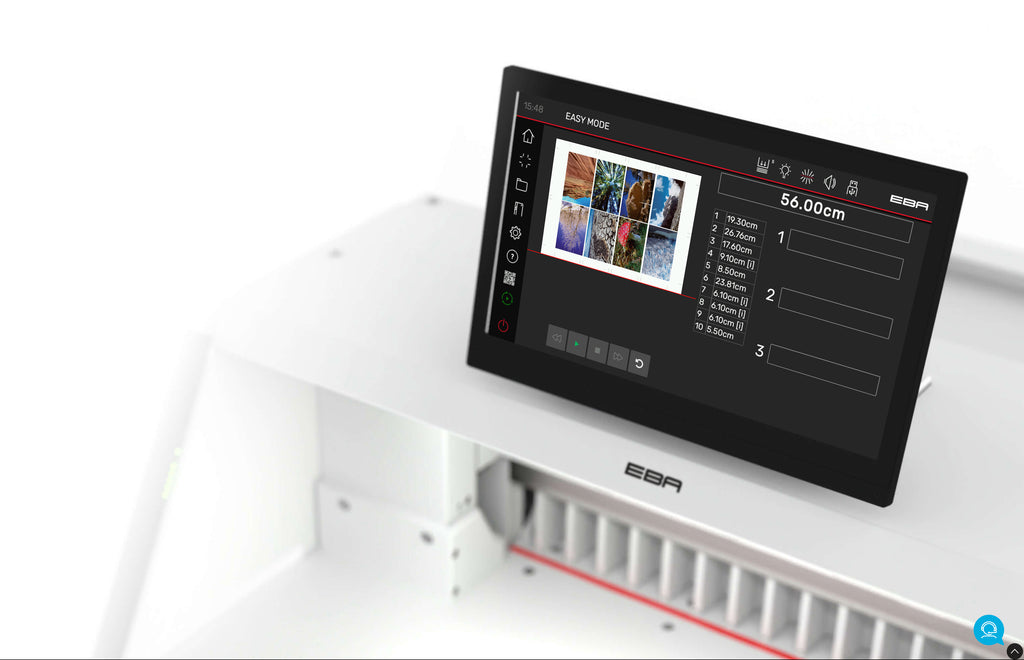

    • Diagonal size touchscreen – use it just like a tablet
    • Electronic code lock to secure the machine
    • Switch between measuring units: mm, cm, inch

    3 good reasons to choose THE 68

    1. Almost limitless opportunities. CUT CONTROL for convenient program editing. Flexible, operator-specific program control DATA MANAGER with an efficient file system.

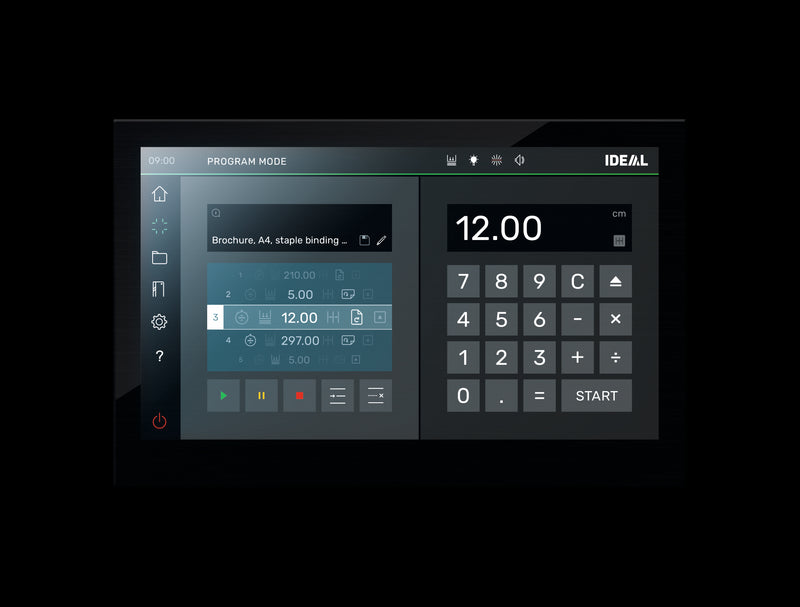

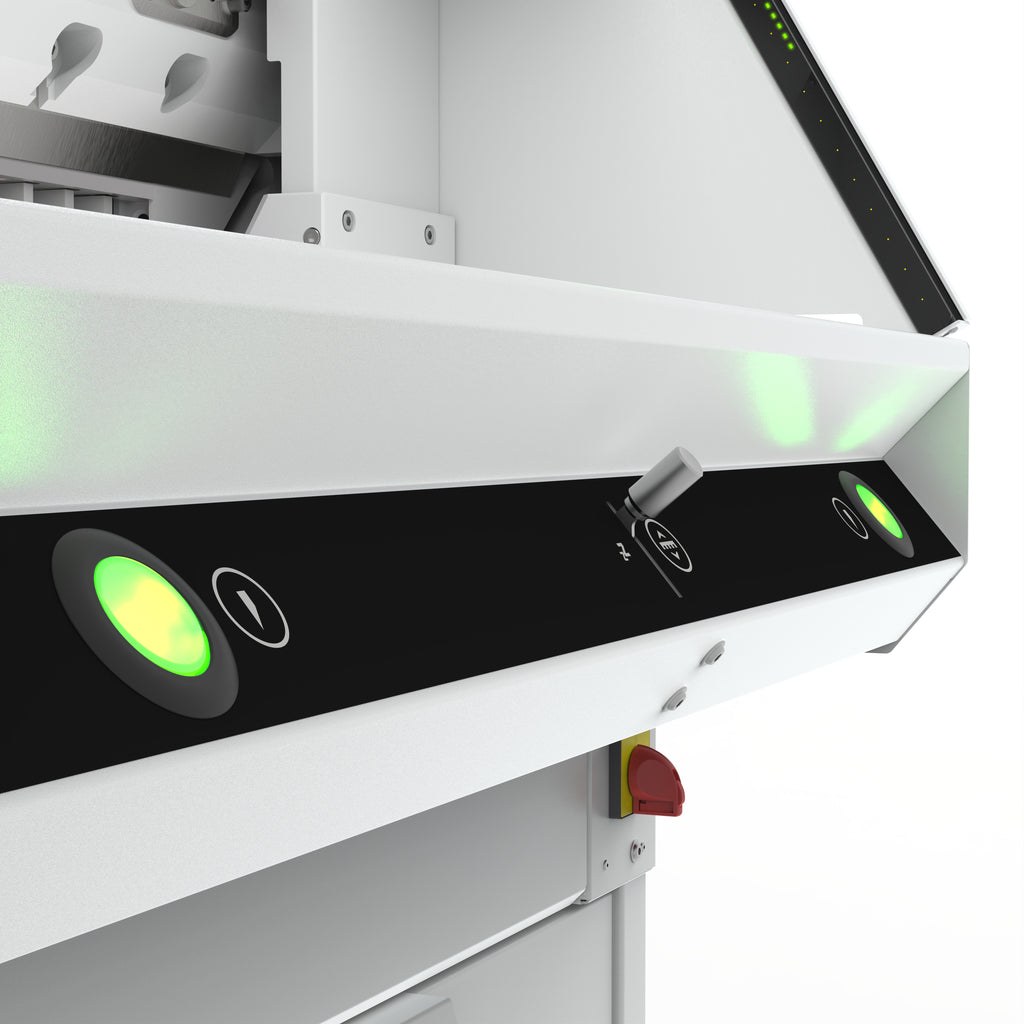

    2. Next-level intuitive operation. Work like you’re on a tablet with the MULTITOUCH DISPLAY. Powerful next-generation software. EASY TO USE: comfortable, safe and secure two-handed cut release
    3. Quality Made in Germany. PRECISION DRIVE for maximum precision. Programmable hydraulic clamp. Safety Cutting System for maximum peace of mind



    Download Brochure



    Key features

    • Cutting length – 680 mm (26.77″)

    • Cutting height – 80 mm (3.15″) / 77 mm (3.03″)*

    • Narrow cut – <15 mm (0.59″) / 60 mm (2.36″)*

    • Power – 230 V / 50 Hz / 1~

    • Fuse protection – 16 amps

    • Dimensions (H × W × D) – 1523 × 1099 × 1331 mm (59.96″ × 43.27″ × 52.40″)

    • Table height – adjustable from 950–1000 mm (37.40″–39.37″)

    • Weight – approx. 330 kg (727.5 lbs)

    • Table depth – 680 mm (26.77″)

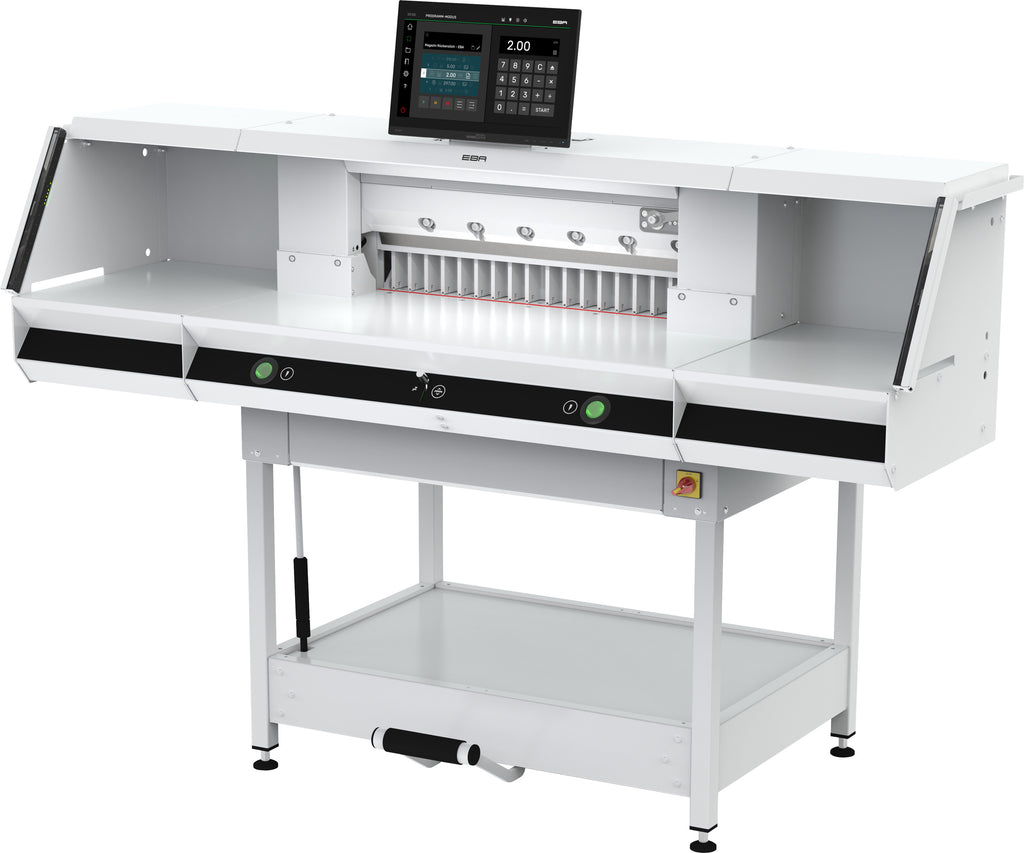

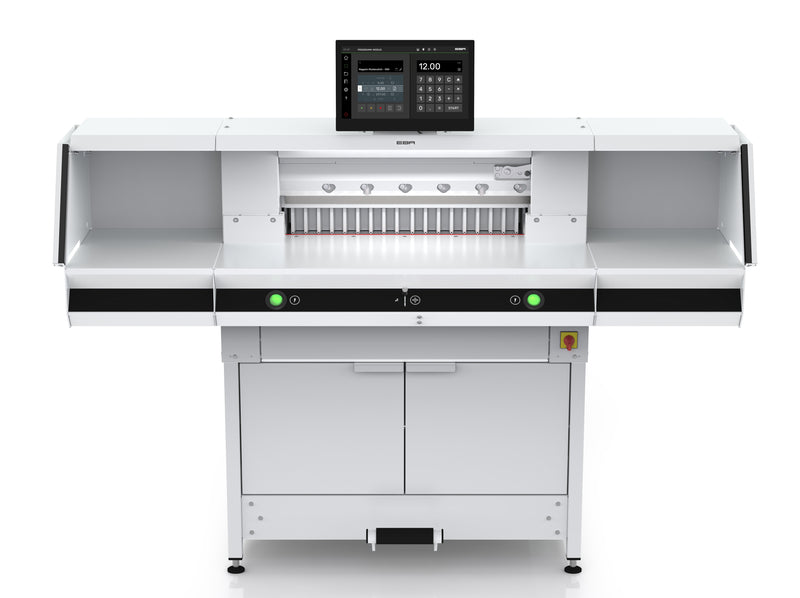

    • Optional side tables

    • Supplied with a knocking up block

    Model: THE 56
    Backgauge drive: Electric
    Clamp type: Hydraulic
    Cut type: Hydraulic
    Clamp opening: 3”
    Cut width: 26”
    Cut depth: 26”
    Clamp pressure: 550-4
    400 PSI”: 400 PSI”
    Safety: IR safety beam
    Backguage Positioning: Touchpad”
    Electrical: 220v/60Hz/3 Phase
    Manufacturer: EBA
    Custom Stock Status: Ships 3-4 weeks
