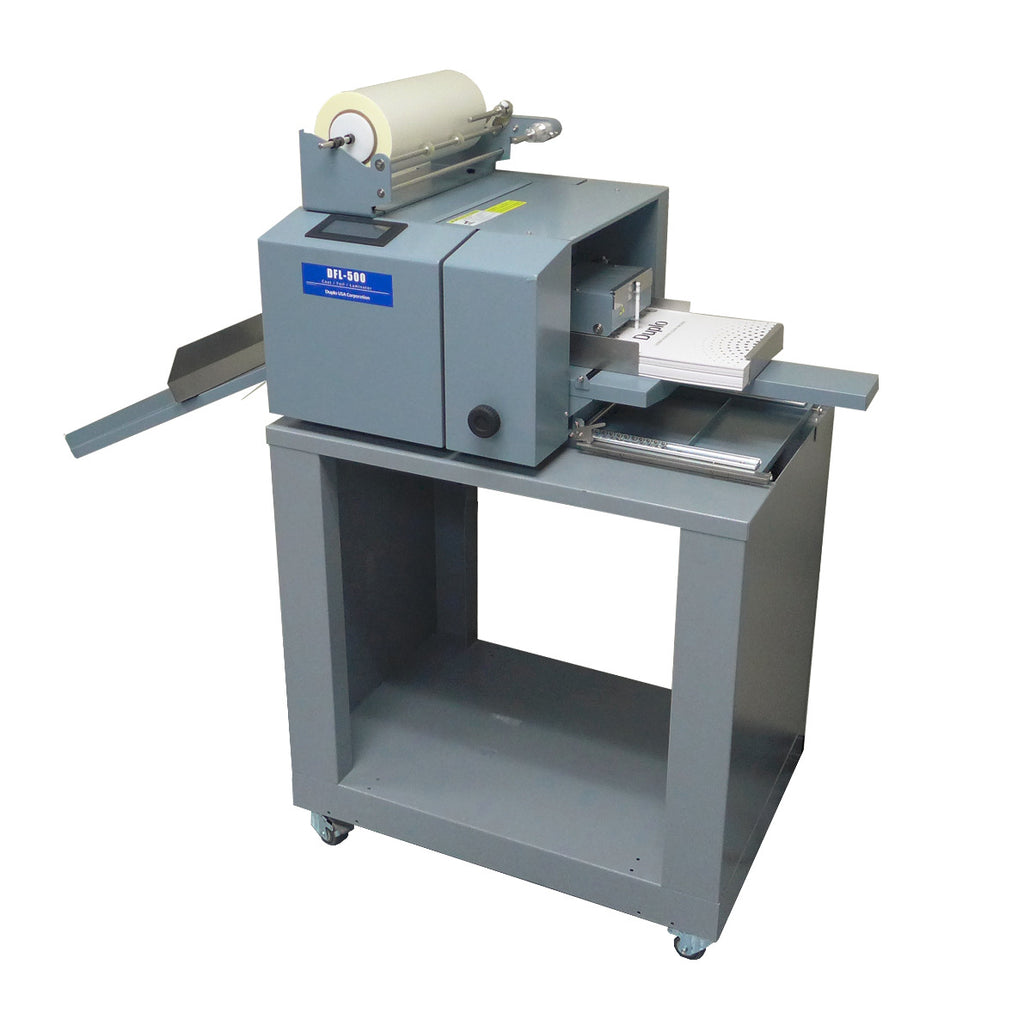

Duplo DFL 500 Dry Coat / Foil / Laminator


Multi-Purpose Embellishment Solution for Shorter Runs

The DFL-500 offers the flexibility to dry coat, foil, or laminate digitally-printed applications with ease. For dry coating, DFL-500 utilizes a ceramic thermal roller and heat control system to apply the film over the sheet. Matte and gloss lamination can be used, providing an added-value layer of protection that also helps spot coating embellishments stand out. For toner foiling, the DFL-500 applies adhesive foil anywhere black toner is printed without the use of dies. Foiling on top polymer can also be done for a raised foil effect.

  • Applies foil over printed toner
  • Applies dry coating and laminating films
  • Creates visually-appealing applications on a budget

 Download Brochure

  • Easy job set up and changeover
  • Foiling with gold, silver, blue, green, red, and matte gold colors
  • Automatic film cutting system to separate laminated sheets
  • Dust removing and de-curling system featured in more expensive laminators
Key Applications
  • Packaging
  • Book covers
  • Business cards
  • Invitations
  • Tickets

Input Paper Size: Foil: 5.8” x 8.3” to 13” x 24”, Laminate: 8.3” x 11.7” to 13” x 24”

Paper Weight:110-400 gsm

Speed:15 sheets per minute

Feeder Capacity: 2.5"

Custom Stock Status: Ships 7-10 days
Manufacturer: Duplo
