Description
Semi-Automatic, Friction Feed Folding

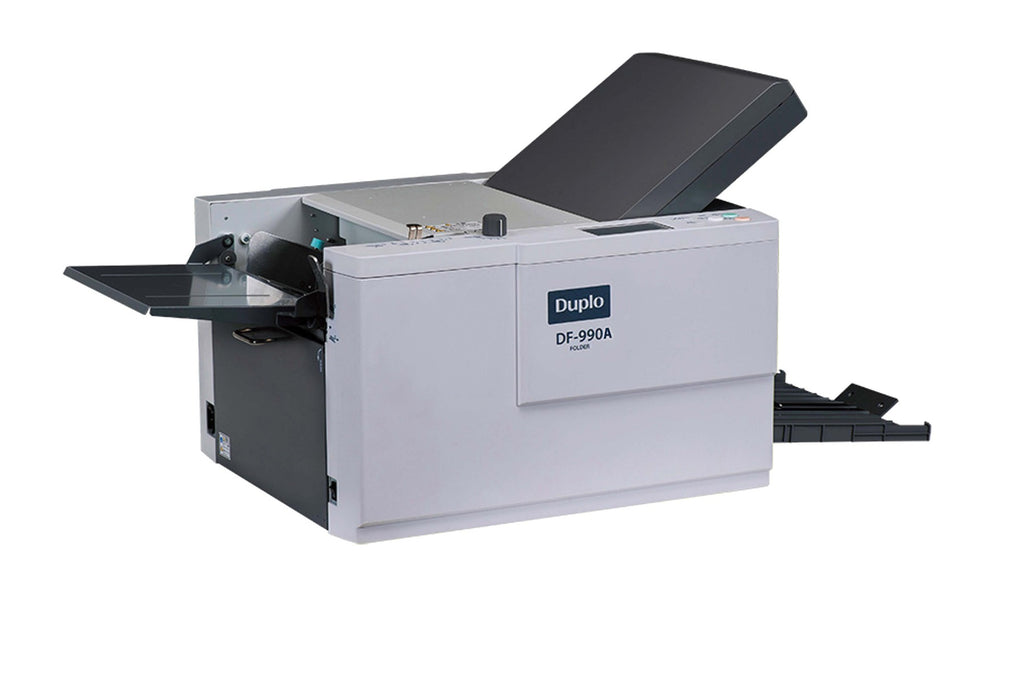

The Duplo DF-990A Automatic Folder is one of Duplo's quietest tabletop folding machines. With a high speed of up to 260 sheets per minute, the DF-990A utilizes a three-roller friction feed system to process a wide range of paper stocks and offers a new hand feed kit option which allows operators to manually feed one to three sheets at a time for quick folding. Simply load the paper into the hand feed tray and the sensor will automatically detect, feed, and fold the paper.
- Performs common fold types as well as custom and cross folds
- Handles bond, NCR, and cover stock
- Eliminates folding by hand
Overview
The Duplo DF-990A Automatic Folder is one of Duplo's quietest tabletop folding machines. With a high speed of up to 260 sheets per minute, the DF-990A utilizes a three-roller friction feed system to process a wide range of paper stocks and offers a new hand feed kit option which allows operators to manually feed one to three sheets at a time for quick folding. Simply load the paper into the hand feed tray and the sensor will automatically detect, feed, and fold the paper. Easy to use and built-in with sound absorbers for quiet operation, the DF-990A eliminates folding by hand and is perfect for any office environment.
The DF-990A comes pre-programmed with six standard fold types including single, double, half accordion, letter, accordion and gate - enabling users to fold a variety of applications at the touch of a button. Using the user-friendly color LCD touch panel, operators can easily select from one of the standard paper sizes and can also create custom fold styles with non-standard paper sizes simply by moving the fold plates. Custom folds can be saved into one of its 15 job memories. To further extend its capabilities, the DF-990A comes standard with a cross folding unit to reprocess single folded sheets into right angle folds.
Features
- Three-roller friction feed system
- High speed folding up to 260 sheets per minute
- Color LCD touch panel for easy operation
- Optional hand feed kit to manually feed one to three sheets at a time
- 1.8" load capacity
- Six pre-programmed standard folds
- Standard cross folding unit for right angle folds
- Automatic paper size detection, up and down feed tray movement, and fold plate setting for faster setup
- Optional ultrasonic double sheet detection
- 30 job memory for custom jobs
- Built-in sound absorbers for quiet operation
Applications
- Brochures
- Menus
- Newsletters
- Invoices
- Transpromos
Specifications
Input Paper Size: Max. 12.24” x 18”, Min. 2.91" x 4.13"
Paper Weight: Coated: 84.9 to 127.9 gsm, Uncoated: 46.5 to 157 gsm
Speed: Up to 260 sheets per minute
Feeder Capacity: Up to 500 sheets
