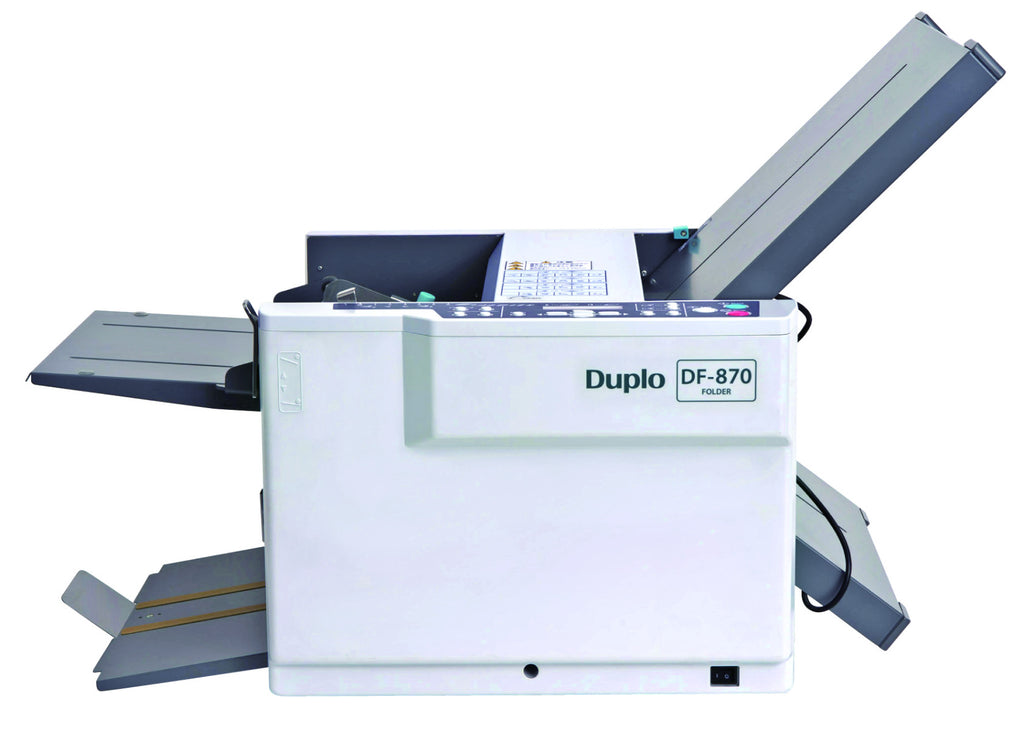

Duplo DF 870 Friction Feed Folder


Description

Automatic, Friction Feed Folding

The DF-870 Folder is one of Duplo’s quietest tabletop folding machines. It features a speed of up to 241 sheets per minute and can process 11″ x 17″ sheets. The DF-870 utilizes a three-roller friction feed system to process a wide range of paper stocks and can also perform cross folds by reprocessing single folded sheets and folding them in a second direction.

  • Performs common fold types as well as custom and cross folds
  • Handles bond, NCR, and cover stock
  • Eliminates folding by hand

Download Brochure

Overview

The automatic Duplo DF-870 Tabletop Folder precisely folds documents such as brochures, menus, letters and invoices at up to 241 letter-size sheets per minute. Users can select from six of the pre-programmed folds for touch-and-go folding or customize their own for non-standard folds. Cross folding for right-angle folds is also possible. Additionally, the DF-870 paper folder has five popular sheet sizes (letter, legal, ledger, 1/2 letter, and 1/2 legal) pre-programmed for quick set up and user convenience. Fold position adjustments are easily done via the control panel. Once the paper size and fold type are entered, the ejection roller automatically moves into position.

With a patented friction feed system and adjustable paper and feed separator pressure controls, a wider range of paper stock up to 157 gsm can be fed with increased accuracy and consistency. Non-stop productivity is also ensured with an ascending/descending counter and 500-sheet feed tray capacity. Ideal for any office, church or school, the DF-870 brings easy and reliable folding to your fingertips.

Features


  • Folds up to 241 sheets per minute
  • 500-sheet feed capacity
  • Automatic setting of fold plate and ejection roller
  • Six pre-programmed popular folds
  • Cross folding feature for right-angle folds
  • Electronic fold plate adjustment for custom folds
  • Test button folds two sheets for inspection


Applications
  • Brochures
  • Menus
  • Newsletters
  • Invoices
  • Transpromos
Specifications

Input Paper Size: Max. 11.69” x 17”, Min. 3.59” x 5.04”

Paper Weight: 52.3 - 157gsm

Speed: Up to 241 sheets per minute

Feeder Capacity: Up to 500 sheets

Custom Stock Status: Ships Immediately
Electrical: 120V 60Hz
Folder Type: Friction Feed Folder
Manufacturer: Duplo
