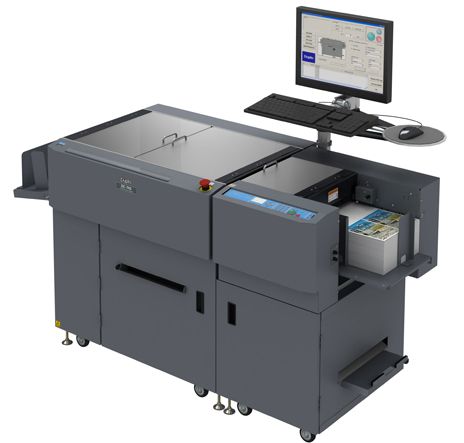

Duplo DC 746 Slitter, Cutter, Creaser


Description

All-in-One Precision Finishing for Mid to High Volume Jobs

The high speed DC-746 Slitter/Cutter/Creaser is Duplo’s production solution. With its ability to slit/cut/crease, perforate, and fold digitally-printed applications in one pass, the DC-746 delivers professionally-finished jobs up to 50 sheets per minute. Cut job costs by doing away with time-consuming set ups and make-ready times. Finish jobs in faster turnarounds. Incredibly efficient and easy to use, the DC-746 produces a wide range of full-bleed applications from 24-up business cards to invitations and tickets on demand.

  • Removes margins/gutters and prevents toner cracking
  • Creates custom T- and L-shape perforations and can fold in-line
  • Eliminates touchpoints and streamlines workflow

Download Brochure

Features
  • Automated job set up and changeovers
  • High feed capacity and external waste bin for non-stop productivity
  • Integrates with Fiery Impose to automate job preparation
  • Perforating and in-line folding options for additional finishing
Key Applications

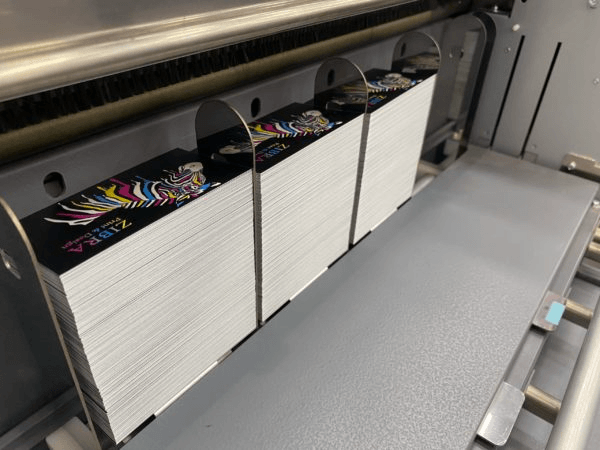

  • Business cards and postcards
  • Gatefold invitations
  • Slit-scored greeting cards
  • Direct mail with perforated reply cards
  • Marketing collateral
Specifications

Input Paper Size: 8.26” x 8.26” to 14.56” x 26.37”

Minimum Finished Size: 1.89” x 1.97”

Paper Weight: 110-350 gsm

Speed: Up to 50 sheets per minute (8.5” x 11” 2 cuts, 1 crease and CCD scanner off)

Feeder Capacity: 5.9” (150 mm)

Slits: Up to 10 per sheet

Cuts: Up to 30 per sheet

Creases: Up to 20 per sheet

Custom Stock Status: Ships Immediately
Electrical: 115v 60hz
Manufacturer: Duplo
