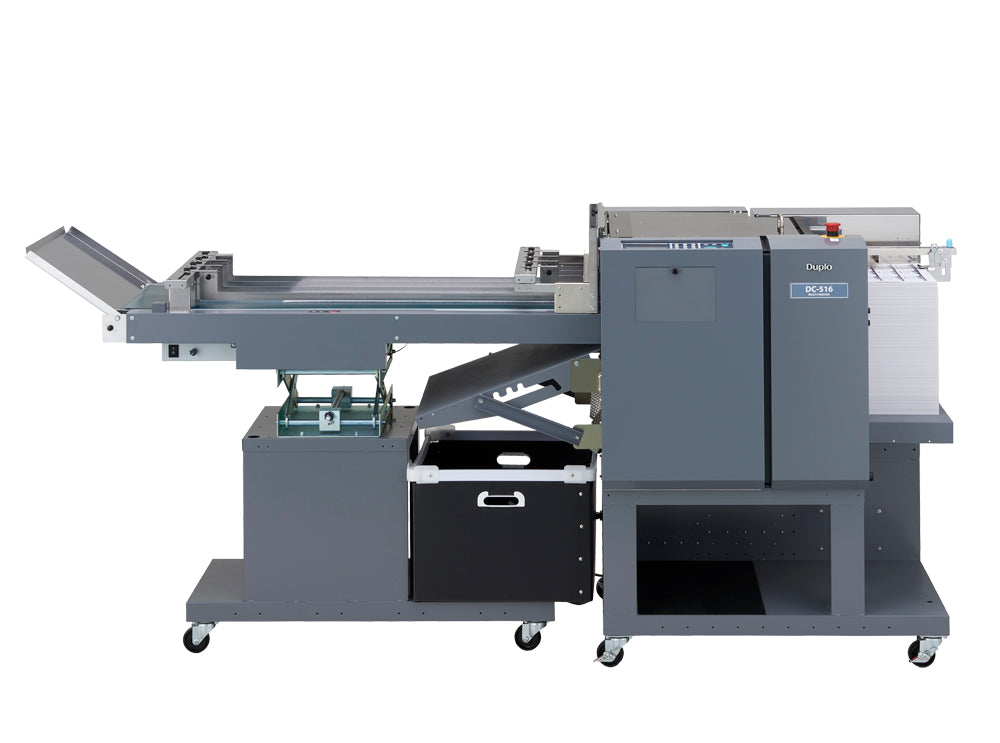

Duplo DC 516 Pro Multi-Finisher


High Speed Finishing for Production Environments

The DC-516 Pro Multi-Finisher offers the flexibility to be used as a high speed creaser, cutter, or perforating device – or a combination of any two – for finishing longer runs. Dual creasing modules perform positive or negative patterns up to 100 sheets per minute and two can be used simultaneously to produce perfect bound covers with hinges and Z-fold pieces. If cutting high volume cards is what you need, you can quickly cut 36-up business cards on 14″ x 20″ using the cutting and slitting modules. The rotary tool and cross perforating modules can be used to create custom T- or L-shape perforations for large production jobs.

  • Removes margins and gutters
  • Performs up and down creases
  • Creates custom T- and L-shape perforations
Download Brochure

  • Easy job set up and changeover
  • 14″ feed capacity for longer runs
  • LCD touchscreen panel with 250 job memory
  • Optional perforating and dual creasing modules for additional finishing
Key Applications
  • Business cards and postcards
  • Z-folds and accordion pieces
  • Perfect bound covers
  • Direct mail with perforated reply cards
  • Marketing collateral

Input Paper Size: 5.5" x 5.9" to 14.56" x 26.37"

Paper Weight: 110-400 gsm

Speed: Creasing: 100 sheets per minute, Cutting: 12 sheets per minute

Feeder Capacity: 14.2"

Slits: Up to 10 per sheet

Cuts: Up to 30 per sheet

Creases:Up to 20 per sheet

Options: Cross perforating module, Additional creasing module for up and down creases, Rotary tool module

Custom Stock Status: Ships 7-10 days
Electrical: 115v 60hz
Manufacturer: Duplo
