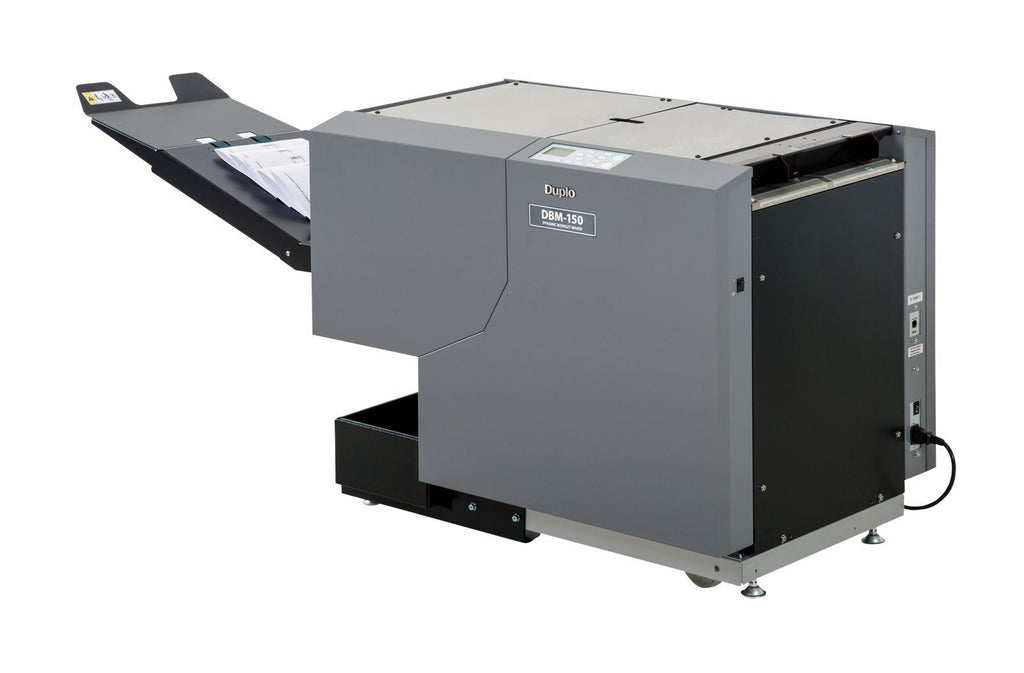

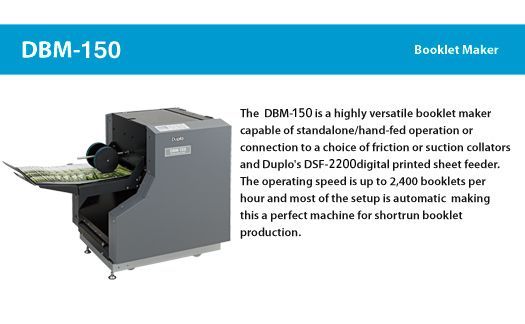

Duplo DBM-150 Automatic Bookletmaker


Precision Bookletmaking for Shorter Runs

With the entry-level 150 Digital Booklet System, the DBM-150S/T Bookletmaker and Trimmer integrate the stapler, folder, and face trimmer into one. The DSF-2200 Sheet Feeder, with front/side air separation and an anti-static device, handles the output printed from your digital presses and offers a barcode reader option to process variable data with integrity. With a speed of up to 1,720 booklets per hour, the 150 Digital Booklet System delivers a variety of applications, from catalogs to corporate reports, on demand.

  • Turns flat sheets into finished booklets
  • Performs saddle, side, and corner-stapling
  • Processes CD to letter-size booklets
Download Brochure

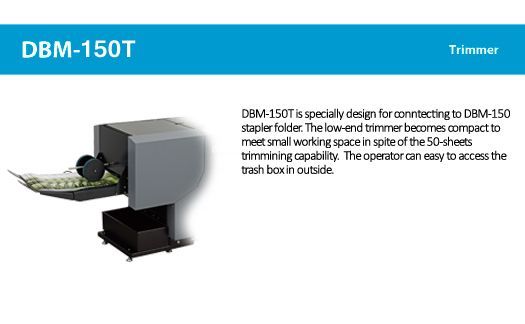

This Duplo DBM 150 can be combined with collating towers (DSC 10/60i), a digital sheet feeder (DSF 2200), a face trimmer (DBM 150T) or Morgana 104 spine squaring machine.

  • Automated job set up and changeovers
  • Two air suction bins with built-in end mark reader
  • LCD control panel with 16-job memory
  • PC Controller option to manage system from a PC
  • Manuals
  • Newsletters
  • CD-size booklets
  • Half letter-size brochures
  • Marketing collateral with spot UV covers

Input Paper Size: 4.72" x 8.27" to 12.60" x 18.11"

Paper Weight: Art coated 79-300 gsm, Fine quality 52.3-300 gsm

Speed: Up to 1720 booklets per hour

Feeder Capacity: Tray A 2.56", Tray B 7.87"

Number of Sheets: Up to 25 sheets

Options: 1D and 2D barcode reader, PC controller software, Pre-loading kit

Colour: Grey
Custom Stock Status: Ships Immediately
Electrical: 115v60hz
Manufacturer: Duplo
