Duplo 350i Digital Booklet System


Creating a perfect combination for productivity, value, and durability, the fully automated 350i Digital Booklet System integrates the Duplo DSF-2200 sheet feeder with the mid-range DBM-350/T Bookletmaker and Trimmer. The 350i Digital Booklet System can be set up in under five minutes and can produce professionally-finished booklets at up to 3,000 booklets per hour.

Download PDF

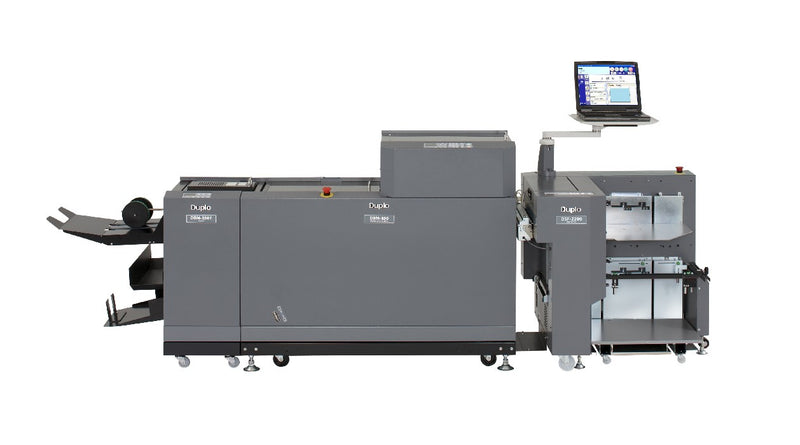

The Duplo 350i Digital Booklet System

The Duplo 350i Digital Booklet System connects the DSF-2200 Sheet Feeder with the DBM-350 Bookletmaker, creating the perfect mid-volume digital finishing solution. The DSF-2200 comes loaded with a number of high-end features including Duplo's own belt suction feed system, front and side air separation, an anti-static device and ultrasonic double feed detection for enhanced feed reliability. It feeds increased paper sizes up to 14" x 20" (or 9.05" x 24" via optional Extension Tray Kit) up to 200 sheets per minute and offers a variety of options including a trail edge air kit, pre-loading kit, and 1D & 2D barcode readers.

Using the PC Controller software for easy operation, heavy-duty Deluxe stitching heads to produce quality stitches, push belt technology to prevent marking and static build-up, and a built-in book spine compressor, the 350i Digital Booklet System can produce up to 3,000 high quality booklets per hour. Expand the flexibility, versatility, and range of the system by adding the optional corner stitch kit or small booklet kit.


  • Ideal for mid-production printers
  • Accepts output from multiple printers
  • Converts pre-collated sets into finished booklets
  • Feeds larger sheet sizes up to 24" with optional Extension Tray Kit
  • Belt suction feeding with front and side air separation
  • Built-in ultrasonic double feed detection and anti-static device
  • PC Controller software for easy job setup
  • Integrated Book Spine Compressor
  • Heavy-duty Deluxe 26D Stitcher Heads

DSF-2200 Digital Sheet Feeder

   •  2 bins

   •  Seperation via : Front air (fan), side air (fan), optional trail edge air (pump)

   •  Paper loading height Bin A : 2.56"; Bin B 7.87"

   •  Paper size length : 7.87" -20"

   •  Paper size width : 4.13" -14.02"

   •  Standard features: End mark detection (sensor), anti- static device, alternate feed function

DBM 350 Bookletmaker

   •  Maximum and minimum paper size is 5.8" x 8.27" to 12.6" x 18.11" (saddle stich and fold)

   • For corner and side stich, maximum and minimum paper size is 10.12" x 7.17" to 11.69" x 8.5".11"

   • Processing speed up to 3000 sets/hour

   •  Up to 20 programs stored in memory

DBM 350T Trimmer

   •  Maximum and minimum booklet size 5.82" x 4.13" to 12.6" x 9.06"

   • Maximum trimming margin is 0.79"

   • Processing speed up to 3000 sets/hour

DBM 350 System Options

   • Duplo DBM 400STR high capacity stacker

   • Duplo DCR-ST Cross Stacker

   • Duplo DSS-350 Square Spine unit

Why buy?

With a variety of  finishing solutions available today, off -line collating continues to maintain significant advantages over in-line and near-line systems. Jobs processed on a collating and bookletmaking system are finished at much faster speeds and output from multiple printers can be accepted and finished with equal ease. Should the printer break down, an off -line finishing operation will continue to run without interruption unlike with an in-line system where the entire production line would be halted.



Custom Stock Status: Ships 7-10 days
Electrical: 110V
Manufacturer: Duplo
