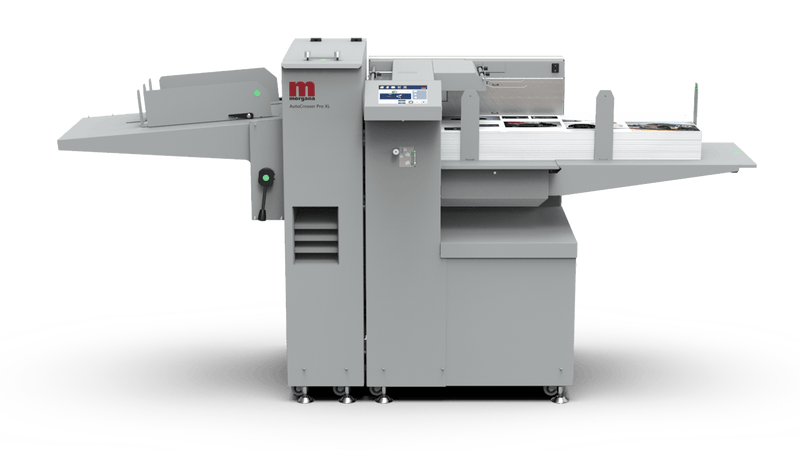

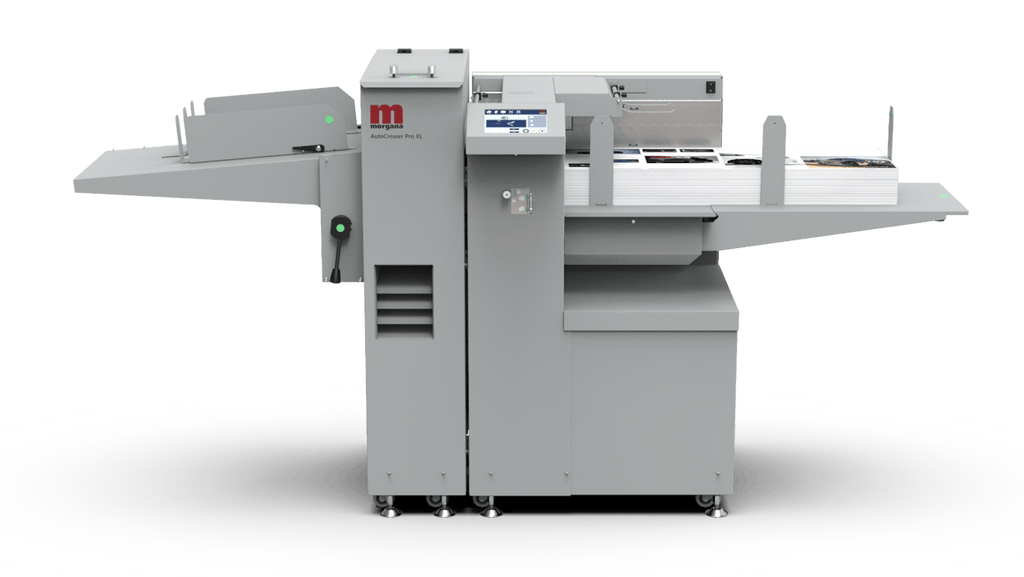

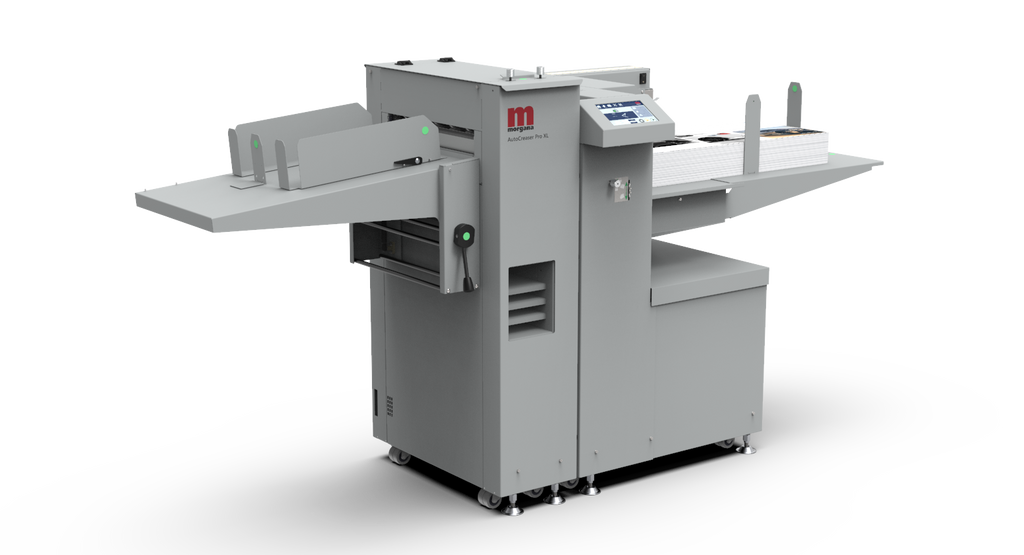

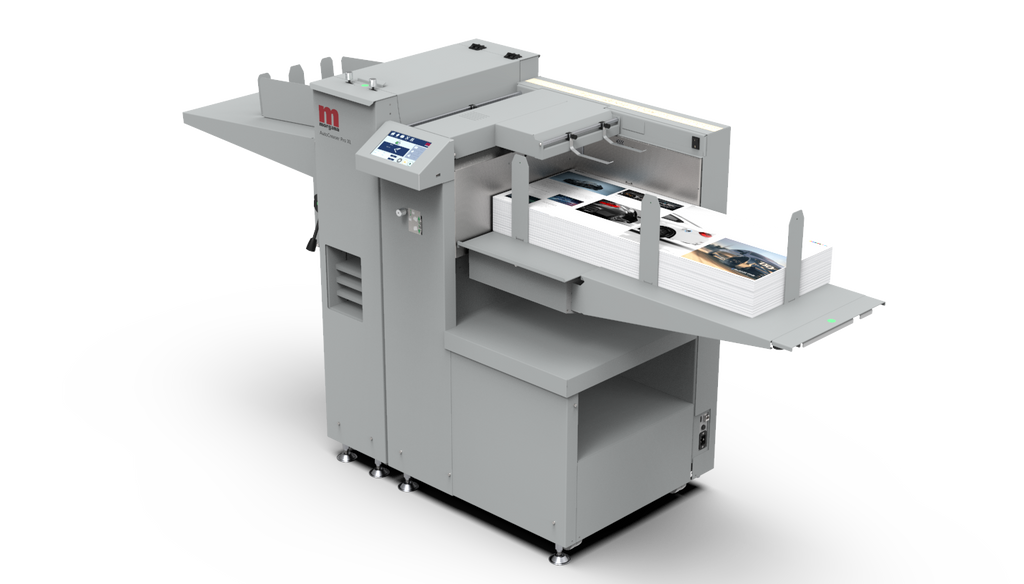

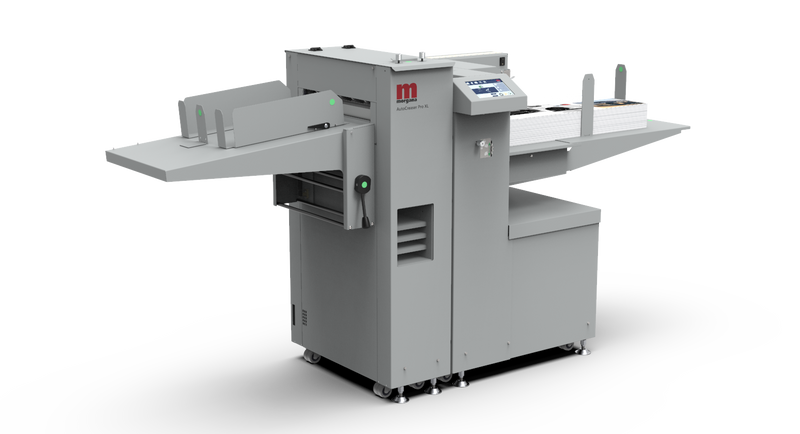

Morgana AutoCreaser PRO XL


The AutoCreaser Pro XL is an easy to use automatic paper creasing system with a cost efficient vacuum top feeder. The unique creasing rule in the AutoCreaser Pro XL eliminates paper tearing and therefore cracking. The AutoCreaser Pro XL runs at 8,500 8.5″ x 11″ sheets per hour, with no loss of accuracy, making this is our most productive creaser to date. The new AutoCreaser Pro XL takes sheet size of 15’’ x 27.5’’ however a sheet size of 15’’ x 51’’ is possible with the table extension.

The AutoCreaser Pro XL is equipped with a new highly automated vacuum feed technology specifically designed to handle the widest range of media. The Feeder continuously checks the paper float zone and automatically makes adjustments on the fly. This is an industry first for a product of this class and ensures highest feed reliability. Operators of all skill levels can get the most out of the AutoCreaser Pro XL. Cracking is always a risk when folding digitally printed output. Morgana’s creasing technology is designed to deliver the perfect fold, without cracking, It is equally effective in dealing with printed card, laminates or cross-grained stock.

Download Brochure

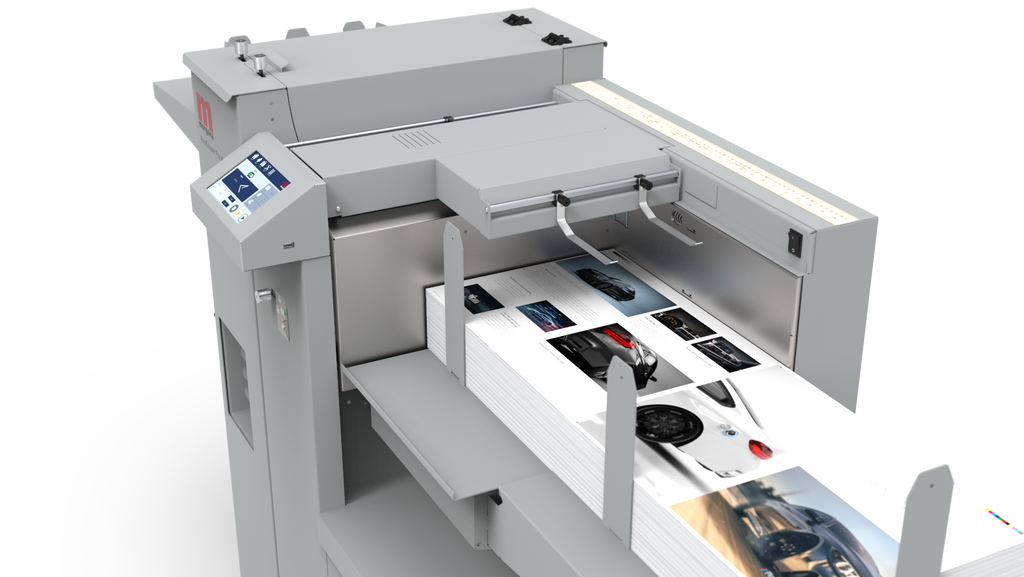

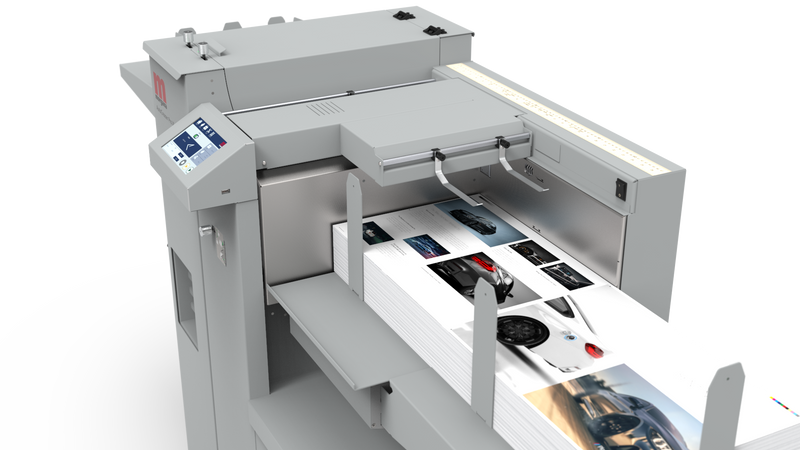

  • Edge registered vacuum top feeder with an outstanding load capacity of 7.8”
  • New sheet separation controlled by optical sensor array - automatically adapts to different media, weights and types

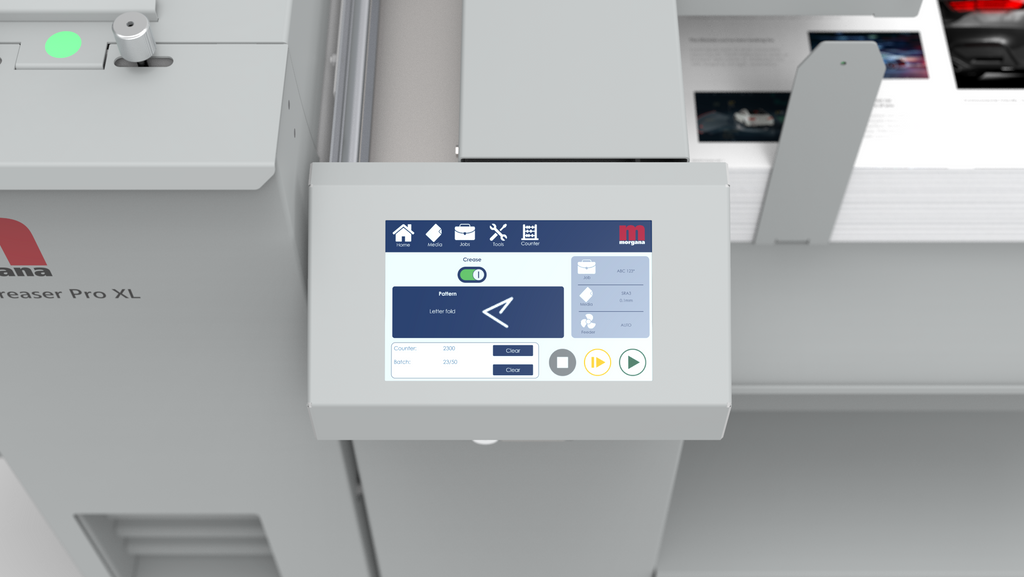

  • Automatic feeding parameter selection based on paper size and thickness - simplifies set up regardless of operator skill
  • Ultrasonic double sheet detection
  • Table extendible up to 51’’ to support popular longer sheet applications
  • Powerful creasing unit can accept standard and narrow creasing blades as well as optional cross perforation blades
  • Optional second creaser enables up/down creasing in one pass
  • Simplified adjustments and blade changeovers without special tools
  • Inline rotary perforation
  • Optional cross perforation unit available
Manufacturer: Morgana/Plockmatic
Model: Autocreaser PRO XL
Minimum Sheet Size: 3.89” x 8.25”
Maximum Sheet Size: 15” x 27.5”
Paper Thickness: 80-400gsm
Sheets per Hour: up to 8
500: 500
Electrical: 110v/60hz
Custom Stock Status: Ships 7-10 days
