Challenge MS5
Challenge MS5
Roll over image to zoom in Click on image to zoom
Challenge MS5
Challenge MS5

Challenge MS5

ChallengeSKU: CHA9005
Price:
$10,895.00

Description

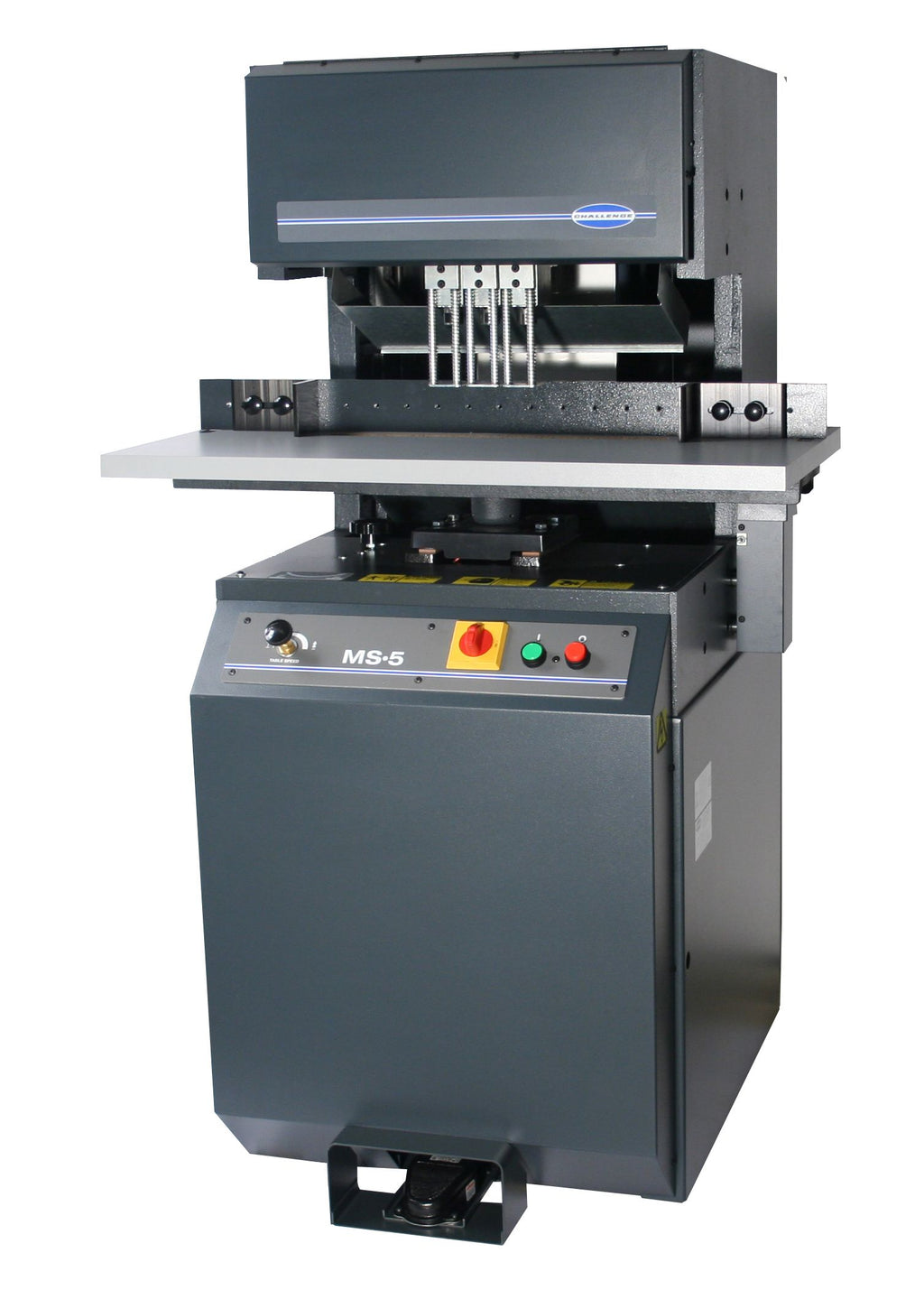

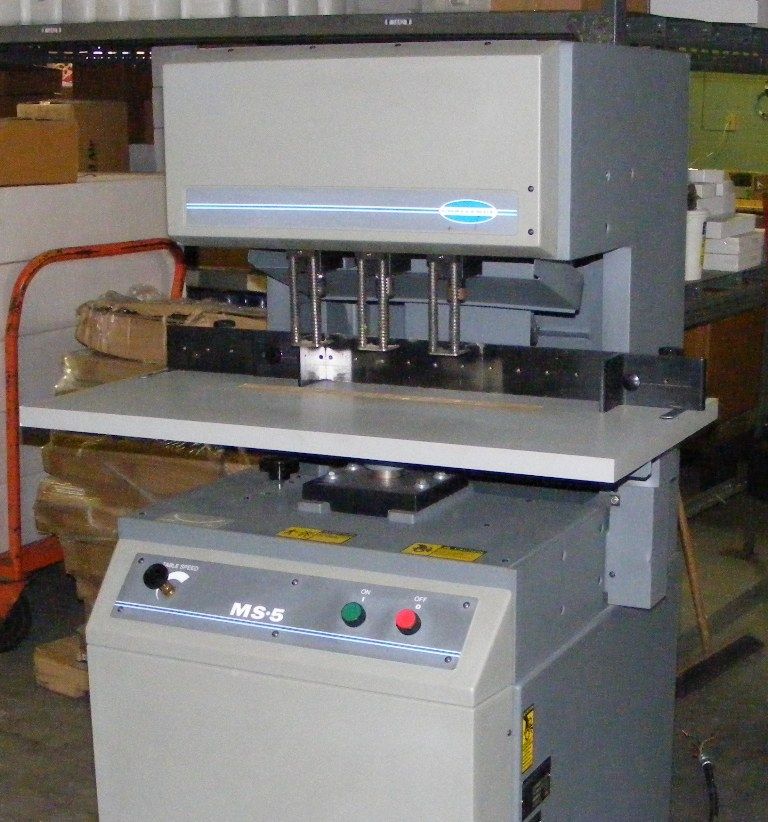

This Challenge MS-5 Drill is like new and equipped with 3 heads. This drill is ideal for any high volume drilling requirements, it can be used as a single, 3 or up to 5 head drill.

 This reconditioned drill comes with 3 heads, warranty all tools and accessories as a new unit.

F e a t u r e s


- Multi-Hole Drilling - up to 5 Holes
- Side Guide Adjustments
- Backgauge Adjustments
- Easy Drill Length Adjustment
- 2" Hollow Drill Bits Available in 13 sizes
- 2-1/2" Hollow Drill Bits Available in 4 sizes
- Hollow Drill Bits Also Available With Teflon Coating







S p e c i f i c a t i o n s

Number of Drill Heads2 to 5
Drill Sizes Available (2" capacity)1/8" to 1/2" / 3 to 13 mm
Drill Sizes Available (2-1/2" capacity)1/4" to 1/2" / 6 to 13 mm
Center to Center Distance Maximum15" / 38 cm
Center to Center Minimum (standard)1-7/8" / 48 mm
Center to Center Minimum (optional narrow heads)1-3/8 / 35 mm
Maximum Drilling Capacity2-1/2" / 63 mm
Strokes per Minute (adjustable)Up to 18
Backgauge Adjustment0 to 5" / 0 to 13 cm
Vertical Adjustment of Individual Heads1/4" / 6 mm
DIMENSIONS
Table Size17-3/4" x 34" / 45 x 87 cm
Table Height37" / 94 cm
Overall Height56" / 142 cm
Floor Space Needed36" x 36" / 92 x 92 cm
Net Weight (approximate)830 lbs / 374 kg
Shipping Weight (approximate)910 lbs / 410 kg
ELECTRICAL
Standard -

1 Phase, 60 Hz, AC.   Pump: 1/2 HP.  Spindle Motor: 1-1/2 HP.
208/230 Volts, 18 Amps (service size 30 Amps)

Optional -

3 Phase, 50 Hz, AC.   Pump: 1/2 HP.  Spindle Motor: 1-1/2 HP.
208/230 Volts, 12 Amps (service size 20 Amps)

Challenge reserves the right to make changes to any product or specification without notice and without incurring responsibility to existing units.





Custom Stock Status: Ships Immediately
Manufacturer: Challenge
